Hybrid Stage for Microscopy

Product Summary

The Hybrid Stage for Microscopy provides a stable platform for patch clamp studies and other experiments.

  • XY-translator with manual and motorized control
  • Platform available for inverted or upright microscopes
  • Motorized movement controller can be added after purchase
  • Manually adjustable height
  • 360-degree orientation of bath chamber
  • US or metric threads
  • 1.5 inch translator travel range for all dimensions
  • Rails for easy positioning of tools
  • Optional stainless steel insert for attaching magnetic tools

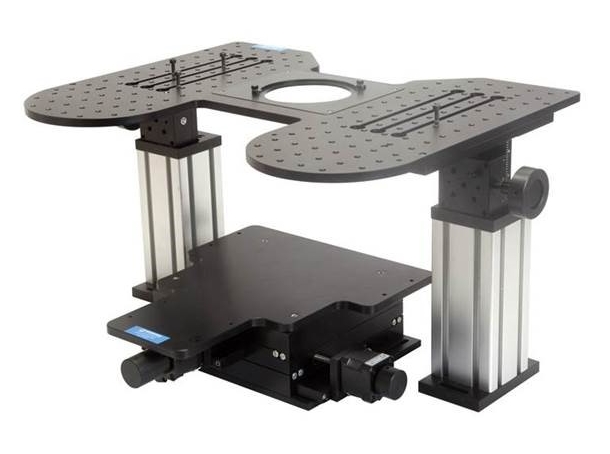

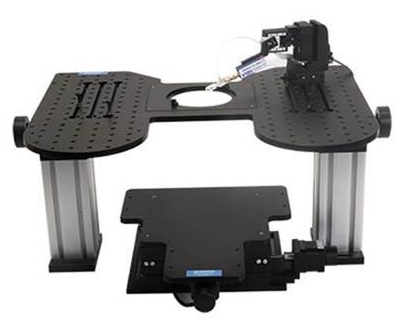

The Hybrid Stage for Microscopy from Warner Instruments is height positionable in the Z-axis direction, while the microscope is moved in the X-Y plane by a smooth, high precision translator.

The hybrid XY-translator comes with preinstalled stepper motors but can be positioned manually if the external controller and/or joystick are not purchased. In both manual and motorized modes, the stage employs anti-backlash screws to provide a rigid, positive coupling enabling the user to repeatedly and precisely position their microscope relative to the stage. The translator's cross-roller construction provides an extremely stable platform having maximal capability.

Hybrid Stage for Microscopy

The round stage cutout accepts Warner's OLY2 stage adapters (Series 20 and Series 30). The cutout's circular shape allows for maximum flexibility in orientating the chamber and bath relative to your recording electrodes. While the stage platform itself is made of aluminum, magnetic stainless steel plates are available for mounting magnetic holders, etc.

US and metric threaded versions are available, and stages can be ordered fitting inverted or upright microscopes

Hybrid Stage for Microscopy

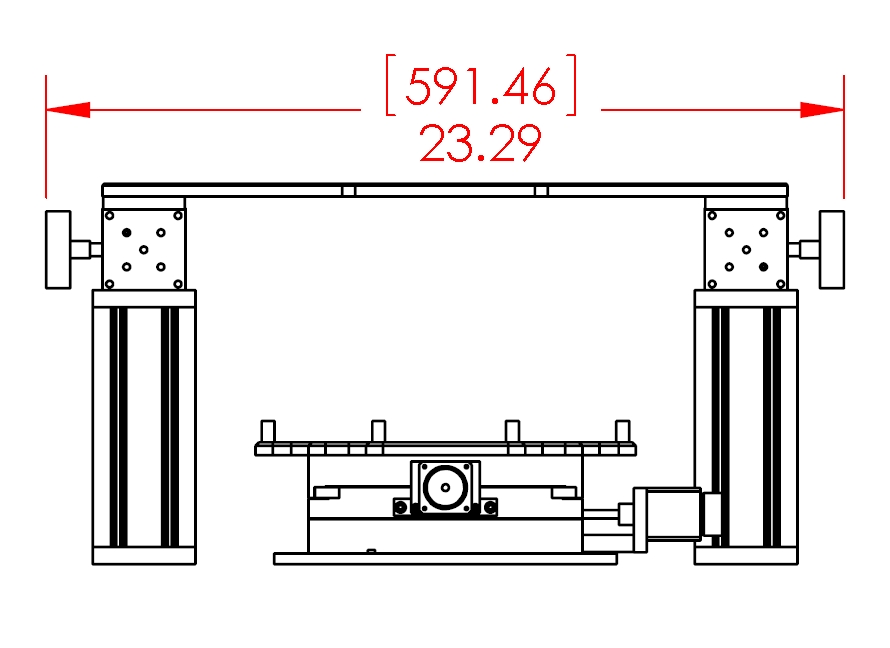

Width 23.29 Inches (591.46 mm)
Height Adjustable

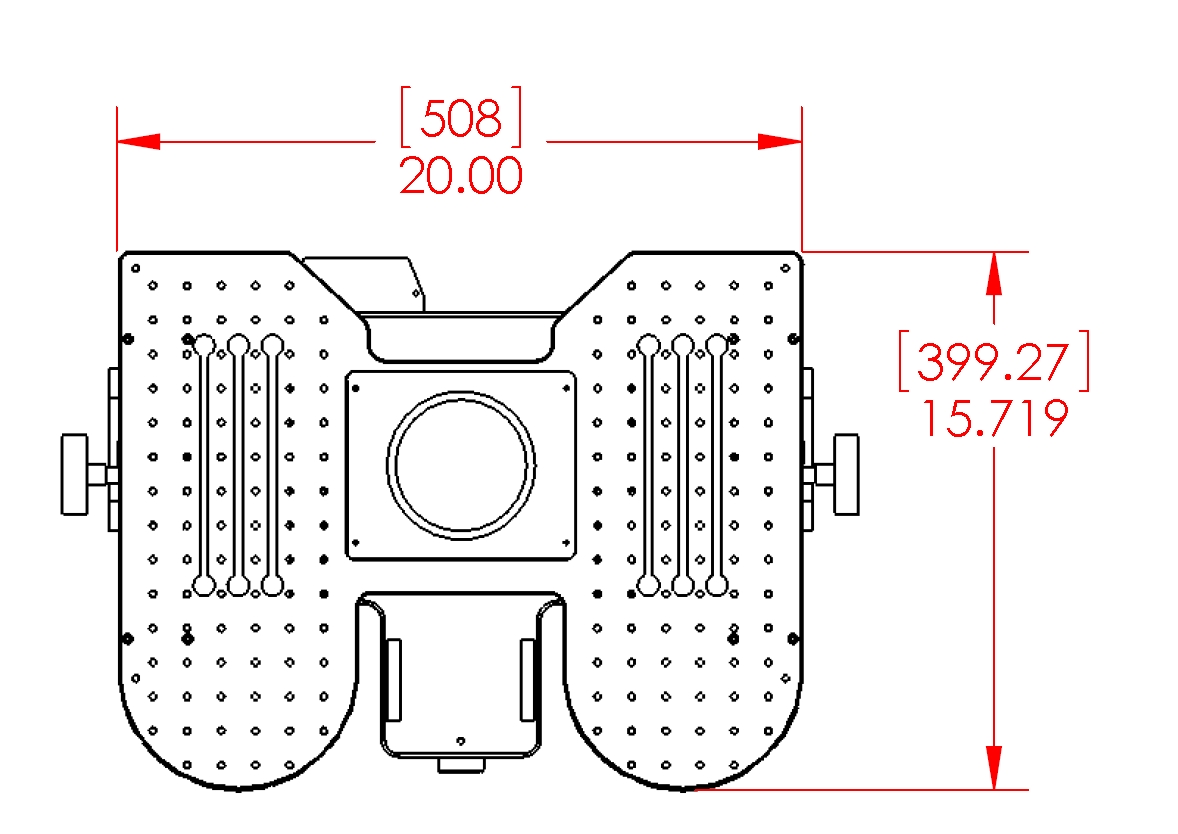

Length 15.719 Inches (399.27 mm)
Material Anodized aluminum
Cutout Dimensions 11.0 cm diameter
stage_dimensions_top
stage_dimensions_front

Order No. Model No. Product Description USA Price Order
Hybrid Stage for Inverted Microscope - US threads
64-2365 MMN-ET-I Stage with XY translator, fits Nikon Eclipse T inverted, US thread Login Login
64-2366 MML-DM-I Stage with XY translator, fits Leica DMI8 inverted, US thread Login Login
64-2367 MMO-IX-I Stage with XY translator, fits Olympus IX-73 inverted, US thread Login Login
64-2368 MMZ-AX-I Stage with XY translator, fits Zeiss Axiovert inverted, US thread Login Login
64-2386 MMO-IX71-I Stage with XY translator, fits Olypmus IX-71 inverted, US thread Login Login
Hybrid Stage for Upright Microscope - US threads
64-2369 MMN-FN1-I Stage with XY translator, fits Nikon E600 FN1 upright, US thread Login Login
64-2370 MML-LFS-I Stage with XY translator, fits Leica DM LFS upright, US thread Login Login
64-2371 MMO-IX-I Stage with XY translator, fits Olympus BX-51WI upright, US thread Login Login
64-2372 MMZ-2FS-I Stage with XY translator, fits Zeiss Axioscop 2FS upright, US thread Login Login
Hybrid Stage for Inverted Microscope - metric threads
64-2373 MMN-ET-M Stage with XY translator, fits Nikon Eclipse T inverted, metric thread Login Login
64-2374 MML-DM-M Stage with XY translator, fits Leica DMI8 inverted, metric thread Login Login
64-2375 MMO-IX-M Stage with XY translator, fits Olympus IX-73 inverted, metric thread Login Login
64-2376 MMZ-AX-M Stage with XY translator, fits Zeiss Axiovert inverted, metric thread Login Login
64-2387 MMO-IX71-M Stage with XY translator, fits Olypmus IX-71 inverted, Metric thread Login Login
Hybrid Stage for Upright Microscope - metric threads
64-2377 MMN-FN1-M Stage with XY translator, fits Nikon E600 FN1 upright, metric thread Login Login
64-2378 MML-LFS-M Stage with XY translator, fits Leica DM LFS upright, metric thread Login Login
64-2379 MMO-X51-M Stage with XY translator, fits Olympus BX-51WI upright, metric thread Login Login
64-2380 MMZ-2FS-M Stage with XY translator, fits Zeiss Axioscop 2FS upright, metric thread Login Login
Accessories
69-5000 Joystick for hybrid stage Login Login
69-5001 Controller for hybrid stage Login Login
64-2384 Stainless steel insert for hybrid stage Login Login
64-2385 Stainless steel plates, 3 pieces Login Login
64-2411 SA-OLY2-AL Series 20 stage adapter, 11.0 cm round, aluminum Login Login
64-0325 SA-30/OLY2 Series 30 stage adapter, fits Olympus IMT2 / IX-50 / IX-70 / BX-50WI and Warner Hybrid Stage Login Login
