(PPS2) MCS Peristaltic Pump Perfusion System

Product Summary

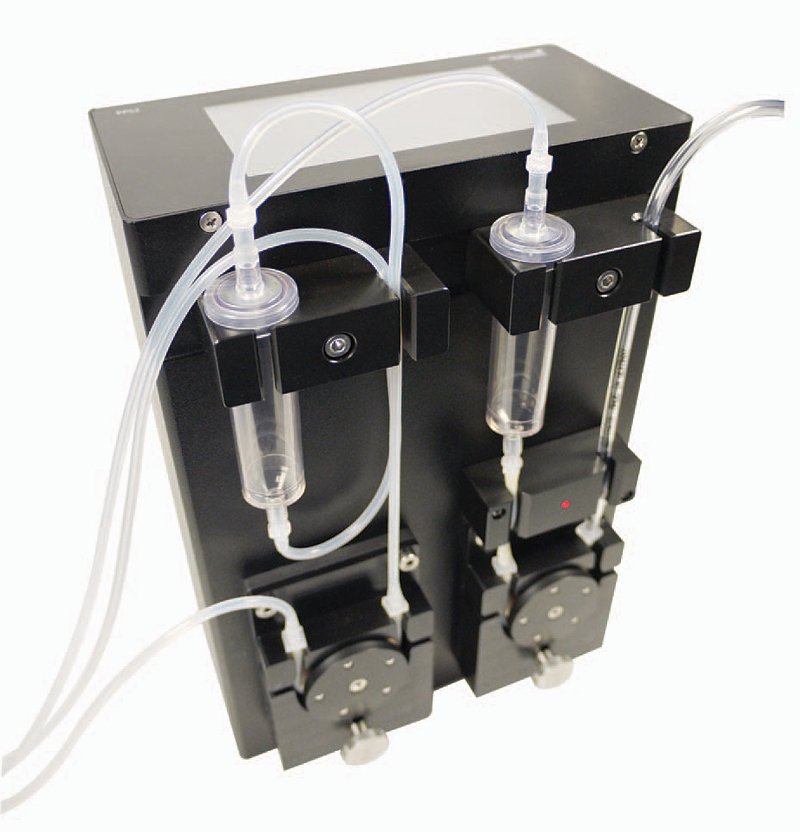

The PPS2 peristaltic perfusion system from Multi Channel Systems is a perfect low pulsation addition to all recording systems. The separate input and output pumps provide quiet and precise flow control.

  • Low-pulsation peristaltic pump
  • Two independently controlled perfusion channels
  • Universal application apparatus
  • Easy handling
  • Software or touch screen control

The information shown here was collected from the Multichannel Systems website.
We invite you to contact them for advanced technical and sales support.


Low-noise peristaltic pump

The PPS2 from Multi Channel Systems is a perfect low pulsation addition to all recording systems. The separate input and output pumps provide quiet and precise control.

The main advantage of the PPS2 is its low pulsation. A low-pulsation construction, a brushless motor with constant rotation speed and low electromagnetic emission, and droplet isolation chambers all contribute to an overall low pulsation level



Easy handling

  • The flow rate of both pumps can be adjusted in the following ways:
  • Software (included, connection via USB 2.0)

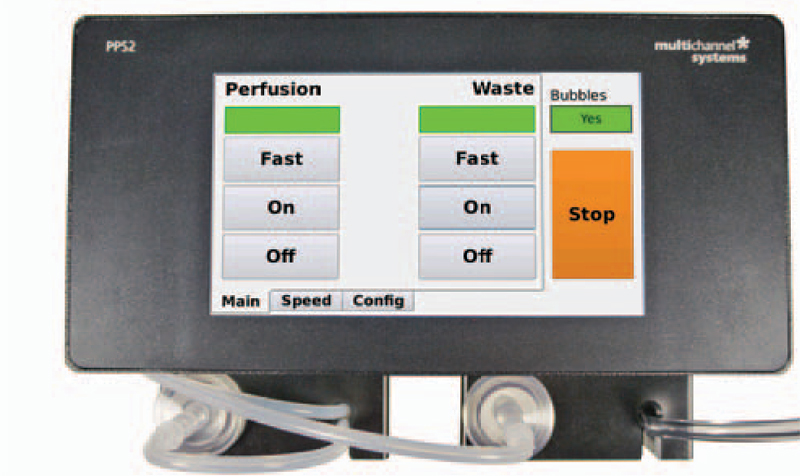

  • Touch screen on the pump itself
  • Additional analog input

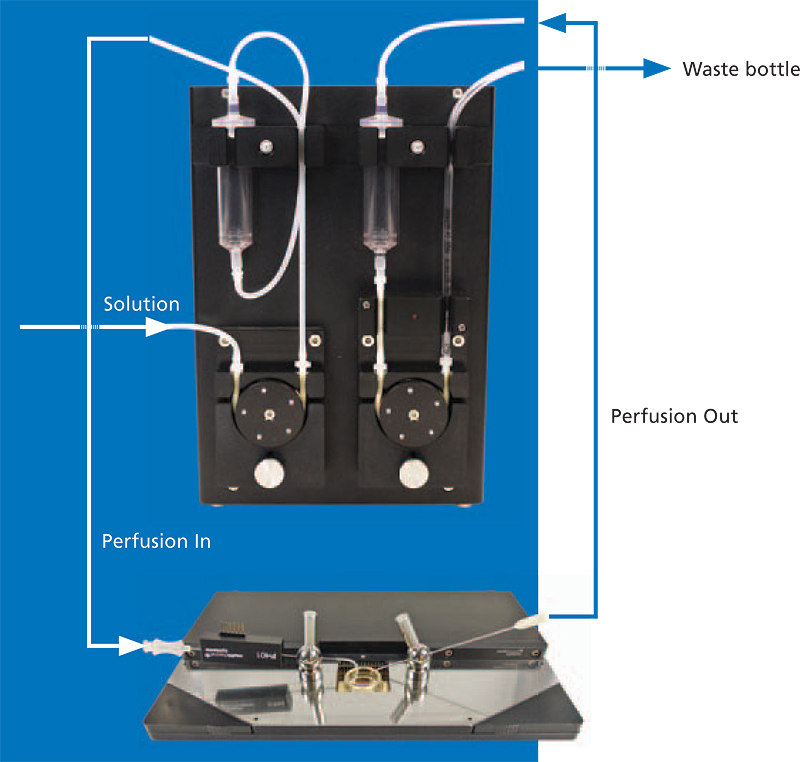

Each pump can be independently controlled or linked to each other. As such, the PPS2 can act as two separate pumps, or cross-coupled to provide tightly regulated infusion/withdraw from the same bath.

The built-in tubes are specially suited for electrophysiological applications. A set of replacement tubes is included and the exchange is quick and simple. As calibrated tubes are used, the flow volume can be adjusted directly from 0.1 to 30 ml/min with a 100 µl/min accuracy.

Hardware

Operating temperature 10°C to 40°C
Storage temperature 10°C to 50°C
Number of channels 2
Number of perfusion inputs 1 per channel
Number of perfusion outputs 1 per channel
Flow rate, per channel 0-30 ml/min, adjustable in 0.1 ml/min steps
Bubble detector optical fluid flow control
Dimensions (H x W x D) 235 x 160 x 110 mm
Weight 3.45 kg
Power supply (SPU 63 - 108) 100-240 VAC, 47-63 Hz
Power consumption 10 W

Software Control

Computer connection USB 2.0 High Speed (type A - B)
Operating system Microsoft Windows ® 7, Vista or XP with NTFS

Order No. Model No. Product Description USA Price Order
89-0688 PPS2 Peristaltic perfusion pump Login Login
89-0692 PPS5 Peristaltic perfusion pump, with 5 channels Login Login
89-0690 PPS2-Set F Fluidic Device Set for PPS2 peristaltic perfusion pump Login Login
Accessories
89-0689 PPS2-Set EA Electrical Accessory Set for PPS2 peristaltic perfusion pump Login Login
89-0690 PPS2-Set F Fluidic Device Set for PPS2 peristaltic perfusion pump Login Login
89-0691 PPS2-Set FA Fluidic Accessories for PPS2 peristaltic perfusion pump Login Login
