(MP, MPP, MM, & ML Series) Perfusion Manifolds

Product Summary

Warner perfusion manifolds can be used in any application where from 2 to 8 perfusion lines are required to be connected to a chamber or other device.

  • Manifold inputs converge to the common output with a minimum of dead space
  • Designed for use with PE-160, PE-50, and PE-10 polyethylene tubing
  • Can also be used with other tubings with similar dimensions

Warner's various perfusion manifold models are based upon the dimensions of the input vs. output polyethylene tubing used. When connected to a chamber via a short length of tubing, very rapid solution changes are possible.

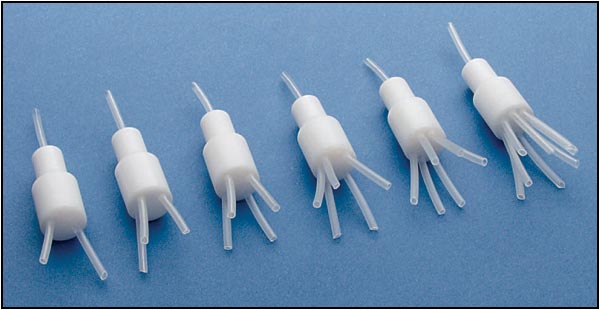

MP Series

MP manifolds are recommended for gravity fed perfusion systems. Input and output tubing are inserted with a friction fit. Manifolds should be ordered with inputs to match the number of solutions to be connected. Pin plugs to block unused inputs are also supplied. MP series manifolds are used with PE-160 tubing.

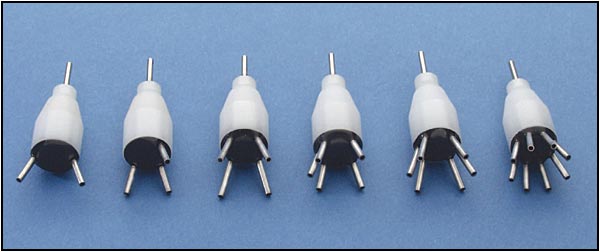

MPP Series

MPP manifolds are suitable for systems in which solutions are pumped or at pressures greater than those generated in gravity fed systems. Input and output ports are 18 gauge stainless steel hypodermic tubing. PE-160 tubing slides over these ports to make a snug fit.



MM and ML Series

Designed to be part of the  SF-77 Perfusion Fast-Step  systems, these miniature manifolds are useful for applications involving small volumes or slow flow rates. Small diameter tubing is used with these models; PE-50 tubing for the input ports, and PE-10 or PE-50 tubing for the MM or ML Series output ports, respectively.

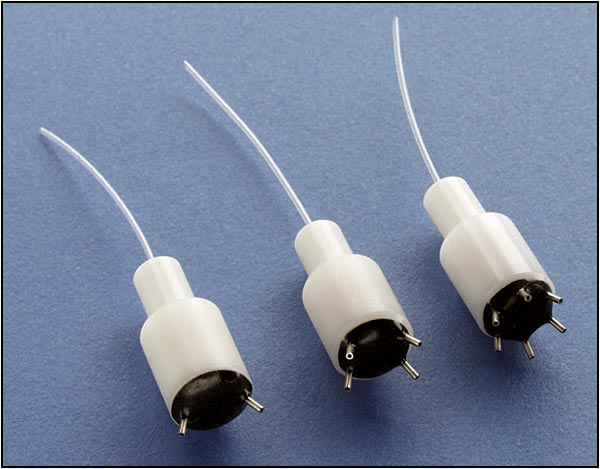

MM Series

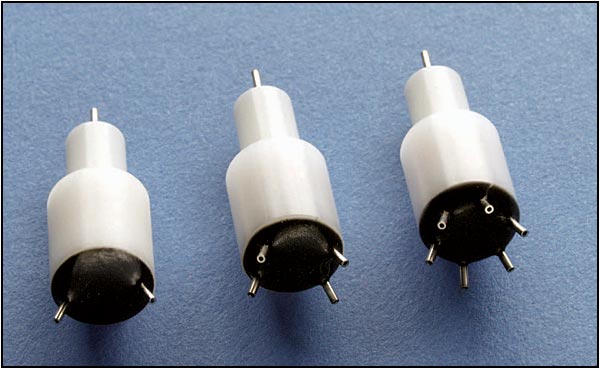

ML Series
Perfusion Manifold MP Series MPP Series MM Series ML Series
Material PTFE Delrin Delrin Delrin
Large Diameter 9.4 mm 9.4 mm 8.0 mm 8.0 mm
Small Diameter 6.3 mm 6.3 mm 4.7 mm 4.7 mm
Body Length 22 mm 21 mm 18 mm 18 mm
Dead Volume 3.5 µl 4 µl 5 µl 5 µl
Input Tubing PE-160 PE-160 PE-50 PE-50
Output Tubing PE-160 PE-160 PE-10 PE-50

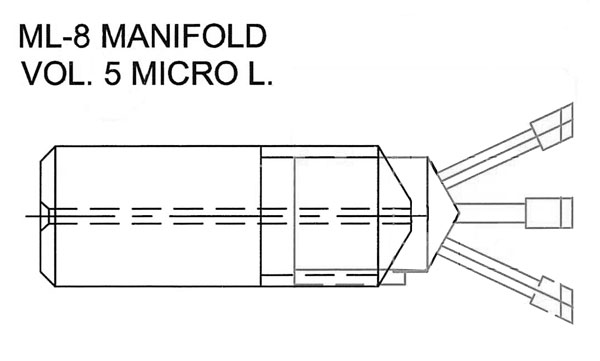

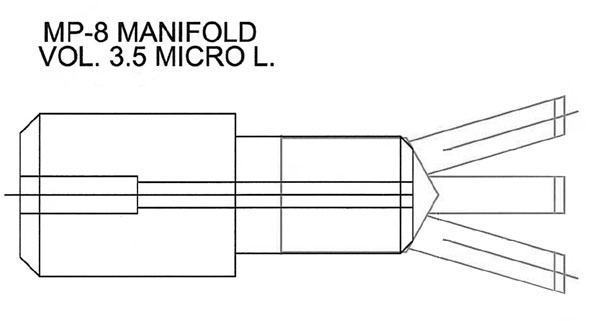

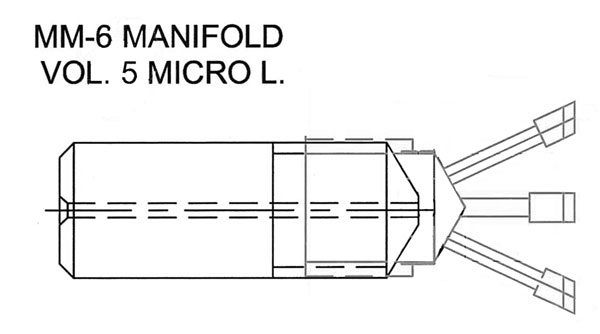

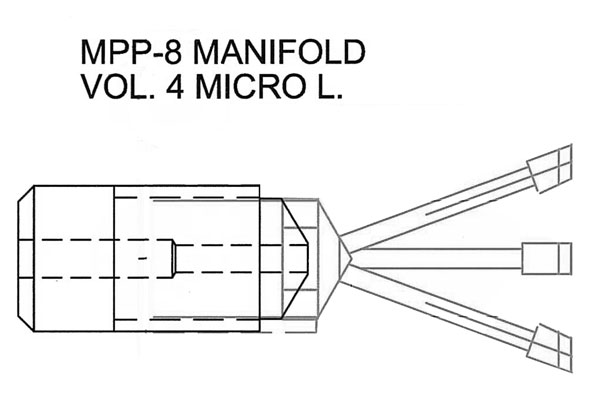

Drawing









Delrin is a trademark of E.I. du Pont de Nemours & Co.



Inner and Outer Tubing Measurements

  ID OD
PE-10 .28 .61
PE-50 .58 .96
PE-90 .86 1.27
PE-160 1.14 1.57

Order No. Model No. Product Description USA Price Order
64-0206 MP-2 MP Series perfusion minimanifold, 2 to 1 ports Login Login
64-0207 MP-3 MP Series perfusion minimanifold, 3 to 1 ports Login Login
64-0208 MP-4 MP Series perfusion minimanifold, 4 to 1 ports Login Login
64-0209 MP-5 MP Series perfusion minimanifold, 5 to 1 ports Login Login
64-0210 MP-6 MP Series perfusion mini manifold, 6 to 1 ports Login Login
64-0211 MP-8 MP Series perfusion mini-manifold, 8 to 1 ports Login Login
64-0755 PE-160/10 Polyethylene tubing, PE-160, 10 ft Login Login
64-0756 PE-160/100 Polyethylene tubing, PE-160, 100 ft Login Login
64-0750 PE-10/10 Polyethylene tubing, PE-10, 10 ft Login Login
64-0751 PE-10/100 Polyethylene tubing, PE-10, 100 ft Login Login
64-0752 PE-50/10 Polyethylene tubing, PE-50, 10 ft Login Login
64-0753 PE-50/100 Polyethylene tubing, PE-50, 100 ft Login Login
64-3017 Gaskets for ML, MM, MPP manifolds, 5 pack Login Login
64-0212 MPP-2 MPP Series perfusion minimanifold, 2 to 1 ports Login Login
99-0634 Replacement pin plugs, 10 pack for MP mainfolds Login Login
MP Series Accessories
64-0219 MHH-38 Manifold/electrode handle, 9.5 mm Login Login
MPP Series
64-0213 MPP-3 MPP Series perfusion minimanifold, 3 to 1 ports Login Login
64-0214 MPP-4 MPP Series perfusion minimanifold, 4 to 1 ports Login Login
64-0215 MPP-5 MPP Series perfusion minimanifold, 5 to 1 ports Login Login
64-0216 MPP-6 MPP Series perfusion minimanifold, 6 to 1 ports Login Login
64-0217 MPP-8 MPP Series perfusion minimanifold, 8 to 1 ports Login Login
MM Series
64-0203 MM-2 MM Series perfusion minimanifold, 2 to 1 ports Login Login
64-0204 MM-4 MM Series perfusion minimanifold, 4 to 1 ports Login Login
64-0205 MM-6 MM Series perfusion minimanifold, 6 to 1 ports Login Login
ML Series
64-0200 ML-2 ML Series perfusion minimanifold, 2 to 1 ports Login Login
64-0201 ML-4 ML Series perfusion minimanifold, 4 to 1 ports Login Login
64-0202 ML-6 ML Series perfusion minimanifold, 6 to 1 ports Login Login
64-0199 ML-8 ML Series perfusion minimanifold, 8 to 1 ports Login Login
