Sensapex uMc automated pressure control

Product Summary

One-click automated pipette cleaning when used with the uMp micromanipulator system

  • Fully automated and robust with in-built calibration feature
  • Fast 4 ms switching between the regulated pressure and user/ATM
  • High performance: -70 kPa to +70 kPa range, 7 Pa resolution and ±140 Pa accuracy
  • Short latency PC control - open-source SDK and Python wrappers available

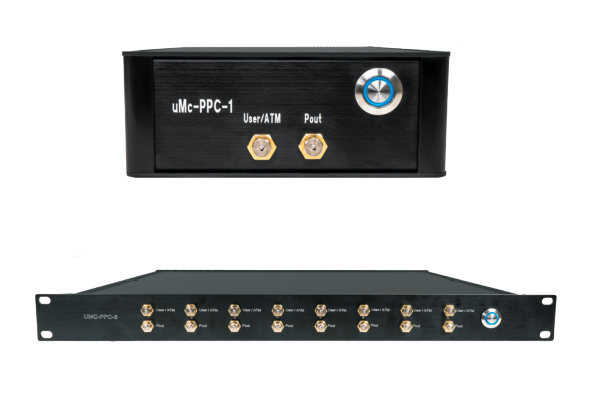

uMc-PPC1 / PPC4 | 8 Pressure controller

Channels: 1 / 4 | 8
Output range: -70 kPa to +70 kPa
Resolution: 7 Pa
Accuracy: ±140 Pa
Supply (min): +77 kPa and -77 kPa
Switch time: 4 ms (regulated vs. user/ATM)
DAQ IO interface: optional / included
Dimensions: 128 x 204 x 52 mm / 483 x 357 x 44 mm
uMc-PPC1 / PPC4 | 8 Pressure controller

Customers from Europe and Australia can use the Multi Channel Systems - Online Shop to order Warner products or create quotes.

Order No. Model No. Product Description USA Price Order
69-4300 uMc-PPC-1 1 channel pressure controller for patch clamp Login Login
69-4301 uMc-PPC-4 4 channel pressure controller for patch clamp Login Login
