Specialized Tools for Electrophysiology and Cell Biology Research

Thermocirculators & Thermostats

Product Summary

  • Electronic controls
  • Internal or external circulation modes
  • Facility for simple recalibration by the user
  • Suitable for both flammable and non-flammable liquids
  • Display can be switched between °C and °F
  • Minimum stray magnetic field
  • Automatic self-tests
  • Overtemp cutouts and alarms

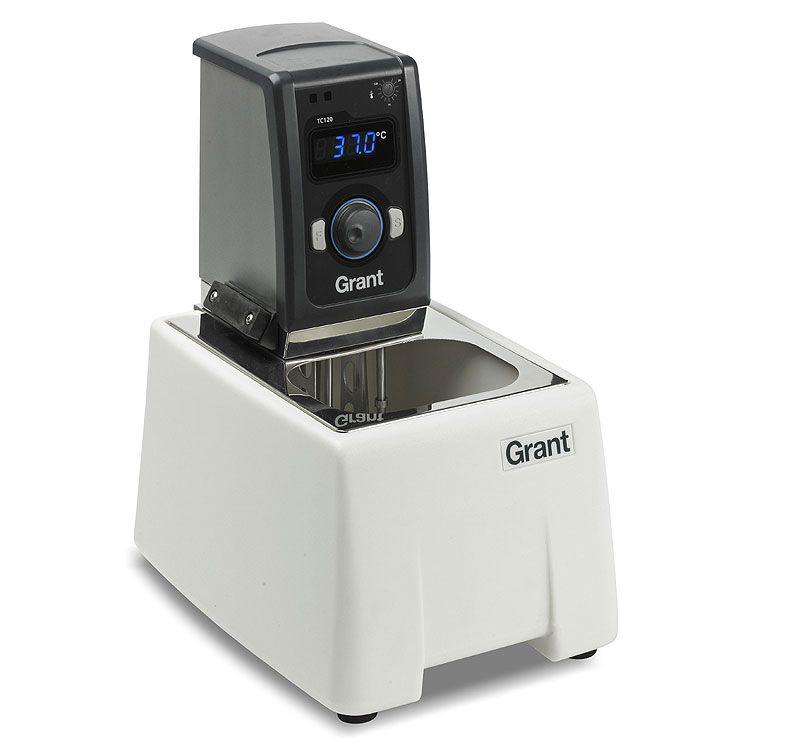

TC120 Heated Circulating Bath

  • Optima Digital Thermostat for precise temperature control up to 99°C
  • Powerful 16L/min integral pump allows temperature-controlled fluid to be pumped to external devices
  • Simple-to-use rotor plus two keys allows quick access to interface for fast, accurate set-up
  • Adjustable over-temperature cutout
  • Simple 2-point recalibration
  • Low liquid protection float switch
  • Timer function for reaction timing
  • Three user-adjustable pre-set temperatures
  • Visual and audible alarms alert you when your attention is required
  • Clear 4-digit display for instant reassurance - easy to read from a distance

Operating temperature range ambient +15 to 99°C

Versatile mid-range model with digital thermostatic control unit and stainless steel tank and a comprehensive specification to suit most applications for high precision temperature control.

Grant TC120 series systems combine a digital heating circulator with an economy plastic tank.

The Grant TC120 heating circulator incorporates Intelligent Control Optimisation"(ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making TC120 systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. It includes a convenient timer function for reaction timing and a variable high temperature alarm setting. The temperature range and heater power are automatically limited according to the liquid type selected.

Note: Accessory cooling is required for operation at or below ambient temperature Note: Alternatively, the Grant Optima TC120 heating circulator can also be used to regulate the temperature in vessels other than Grant tanks. Such vessels must have vertical sides and a maximum wall thickness of 35 mm for rectangular tanks, 30 mm for circular tanks (300 mm diameter) and a capacity of up to 50 litres. The control unit is attached to other vessels by means of a clamp.


Heated circulating baths provide a source of precision heating and cooling for many routine and sensitive analytical procedures. They are suitable for use as both open and closed loop circulators (i.e. remote vessel open or closed). Alternatively, the Grant FH series of flow heaters (closed circulators) can be used. For more powerful heating requirements, e.g. i.e. above +200ºC, see Grant high temperature baths or contact Grant for advice.


Lauda Bath/Immersion Thermostats (E-103)

Economical stainless steel bath/immersion thermostat that provides temperature controlled circulating water from 20°C to 150°C.
Lauda Bath/Circulation Thermostats are economical stainless steel baths that provide temperature controlled water up to 150°C.

This high-quality family of compact bath/immersion thermostats was especially designed for the requirements of biotechnology and the basic medical laboratory. Each device has a control unit, cooling coil and circulating water pump. Pump connections are mounted on the bath bridge.

  • Temperatures from 20°C to 150°C
  • Units with the latest microprocessor technology and PID control
  • User-friendly menu guidance
  • 3 Key operation
Lauda Low-Temp Thermostats (RE 207)

These powerful, low-temperature thermostats have the latest microprocessor technology.

  • Clear 2-line LCD display with numbers and symbols
  • RS 232 C interface for computer connection
  • Factory calibration at 2 points
  • Parallel display of actual and set temperature
  • Messages for the various operating states in plain language
  • Audible alarm for low level and over temperature
  • Facility for remote fault indication through floating contact

The refrigerating system with energy-saving automatic compressor control is environmentally friendly through the use of CFC-free refrigerants. Recyclable through the use of CFC-free insulation. They are innovative and environmentally friendly bench units with a built-in refrigeration system. The ECO-line RE 207 are low-temperature thermostats which consist of a pump and the E200 control heads, together with a bath and refrigeration unit.

TC120 Series Heated Circulating Baths

Temperature Range Ambient +15 to 99°C
Working area (l x w) 120 x 150 mm
Min/max liquid depths 80/140 mm
Inner tank dimensions (l x w x h 240 x 160 x 150 mm
Overall dimensions incl. controller (l x w x h) 390 x 200 x 380 mm
Stability (DIN 12876) @ 70°C ± 0.05
Uniformity (DIN 12876) @ 70°C ± 0.1
Setting resolution 0.1
Display 4 digit LED
Timer function 1 to 9999 mins
No. preset temperatures 3
Two point re-calibration yes
Safety adjustable cut-out
Fluid level - float switch yes
Heater power 120 V kW 1.4
Heater power 230 V kW 1.3
Electrical power 120 V kW 1.5(50-60 Hz)
Electrical power 230 V kW 1.4 (50 Hz)
Height above tank rim 200 mm
Depth below tank rim 135 mm



Lauda Bath/Immersion Thermostats (E-103)

  E-103 E-111 E-119
Temperature Range 20 - 150 °C 20 - 150 °C 20 - 150 °C
Temperature Control* ±0.05°C ±0.05°C ±0.05°C
Temperature Indications 1 line 1 line 1 line
Heater Power 1.5 kW 1.5 kW 1.5 kW
Pump Output, L/min 17 17 17
Pump Output Bar 0.4 0.4 0.4
Bath Volume, L 2.5 - 3.5 9 - 12 12 - 18
Bath Opening 35 x 105 mm 300 x 190 mm 300 x 365 mm
Bath Depth 150 mm 150 mm 150 mm
Outlet/Inlet, OD 12 mm 12 mm 12 mm
Overall Dimension
H x W x D
349 x 168 x 271 mm 349 x 331 x 360 mm 349 x 331 x 536 mm
*Operating temperature range with water cooling



Lauda Low-Temp Thermostats (RE 207)

Temperature Range* -35 - 200°C
Temperature Control, ± °C ± 0.02°C
Temperature Indications 2 lines
Heater Power 2.25 kW
Cooling Capacity At 20°C 0.3 kW
Cooling Capacity Tmin* 0.06 kW at -30°C
Pump Output L/min 17
Pump Output Bar 0.4
Bath Volume 4 6 L
Bath Opening 150 x 130 mm
Bath Depth 160 mm
Overall Dimension, H x W x D 557 x 200 x 400 mm
*Operating temperature range with water cooling

Order No. Model No. Product Description USA Price Order
72-4924 TC-120 Thermocirculator, 5 Liter Plastic Bath with Lid, 120 V, 60 Hz Login Login
72-4921 TC-120 Thermocirculator, 5 Liter Plastic Bath with Lid, 220 V, 50 Hz Login Login
64-2244 WB-KIT TC-120 Thermocirculator Tubing Kit Login Login
