(MI-LED) Dolan-Jenner High Intensity LED Fiber Optic Illuminator

Product Summary

The MI-LED fiber optic illuminator offers long life LED illumination for microscopy and other cold light applications.



  • High PowerWhite LEDs
  • Universal Power Supply
  • Consistent Color Temperature
  • Typical LED lifespan 40,000 hours
  • Multiple Fiber Optic Interface Options

The model MI-LED fiber optic illuminator offers long life LED illumination for microscopy and numerous other cold light applications.The MI-LED is available without attachments or in a complete system that includes a single light guide, a dual gooseneck lightguide with focusing lenses, or a ring light.

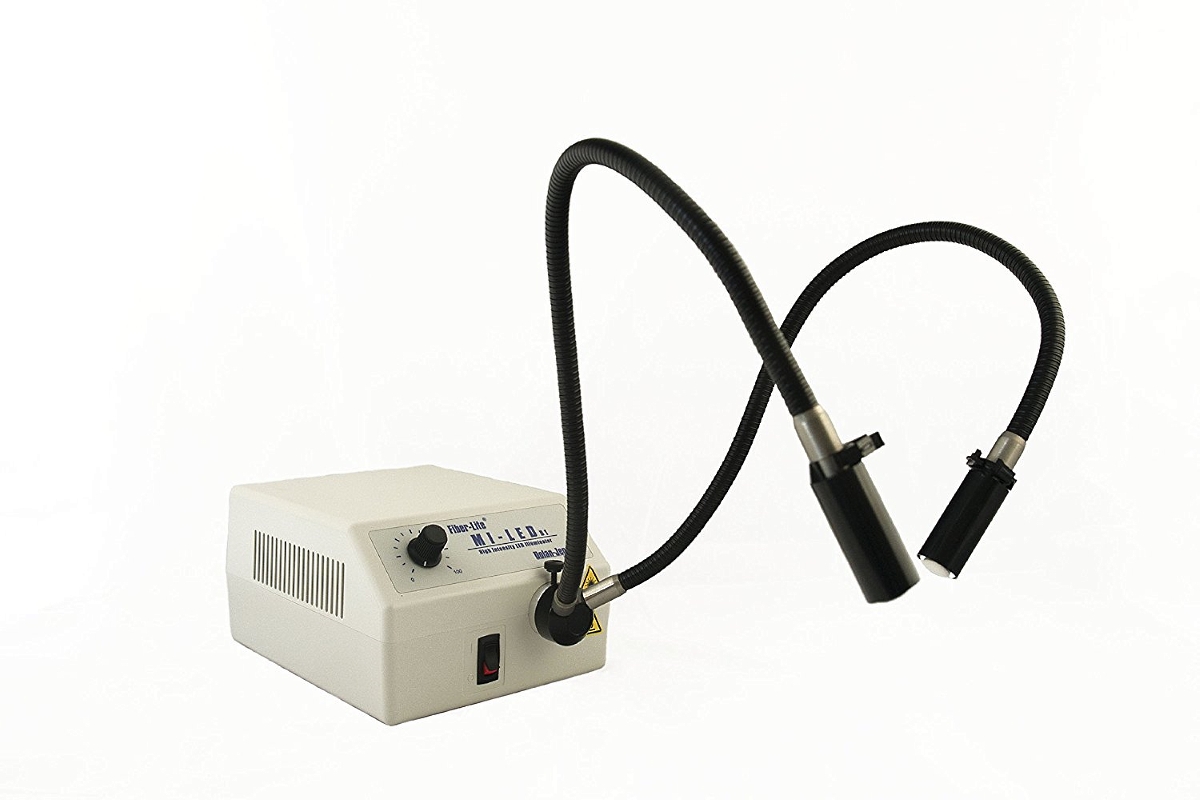

Dual Gooseneck System

The self-supporting bifuracted light guide with starts from the light source with a transition incline of 45 degrees, from which the gooseneck branches diverge at an angle designed to accommodate any steromicroscope without interference to focusing or specimen manipulation.

Each seperate branch has a 5 mm bundle diameter and the 23" dual arm gooseneck inlcudes 28 mm focusing lenses. This system provides the most obedient light output placement for critical illumination.

Dolan-Jenner High Intensity LED Fiber Optic Illuminator  (MI-LED)

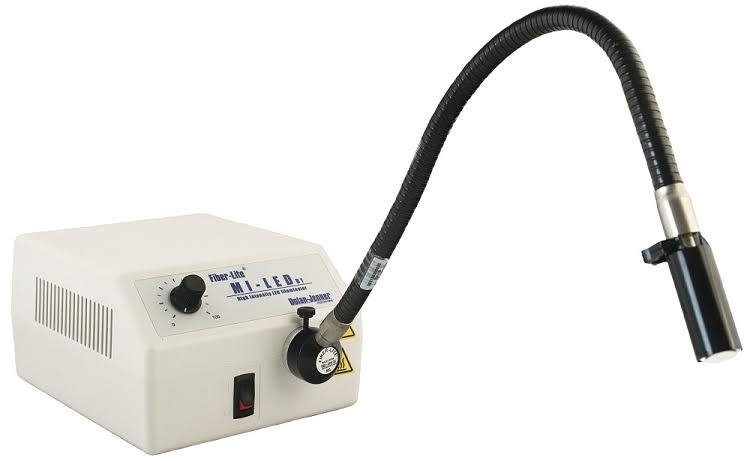

Single Gooseneck System

The single gooseneck is designed for applications that require a single, near horizontal, incident angle or a downward projected source of high intensity cold light. The single arm gooseneck is self-supporting and starts from the light source with a transition incline of 45 degrees.

Dolan-Jenner High Intensity LED Fiber Optic Illuminator  (MI-LED)

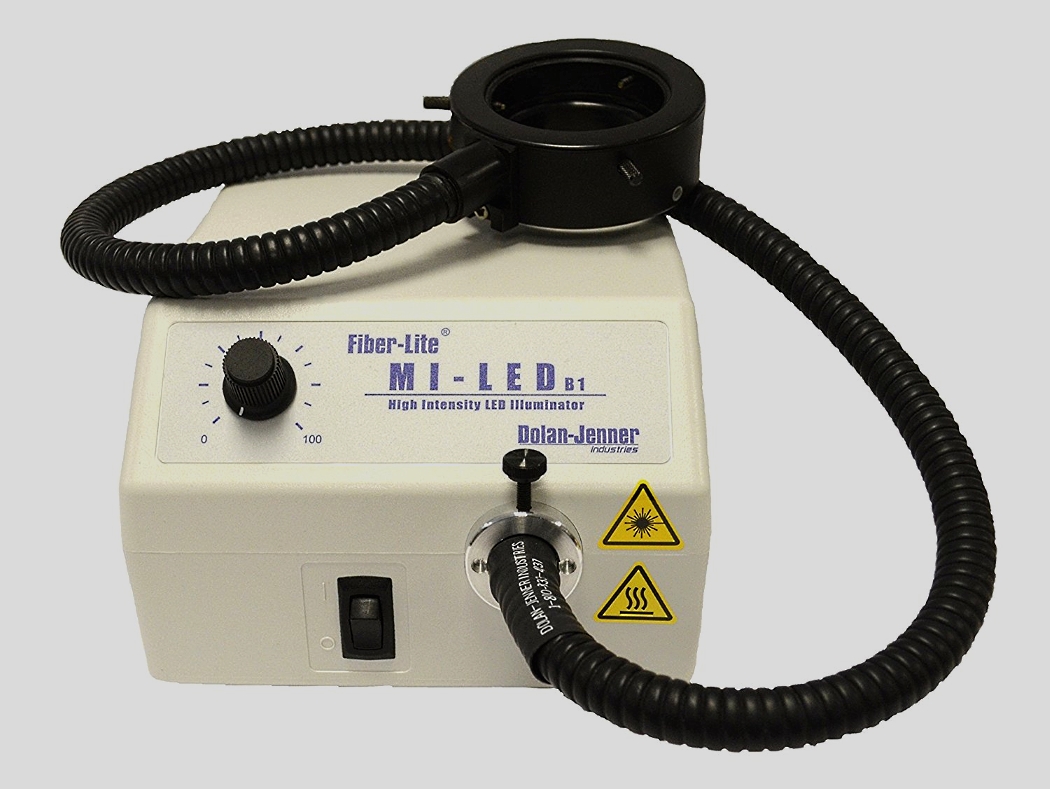

Ringlight System

The ring light illumination system provides high intensity illumination at the highest magnification and long working distances without light adjustment when refocusing or when zoom features are used. The optic output is an annular ring configured to supply 360° of brilliant, oblique, and shadowless cross-illumination directed toward the optical axis at working distances from 4-23 cm. Fits objective lenses with 50-60 mm diameter.

Dolan-Jenner High Intensity LED Fiber Optic Illuminator  (MI-LED)

Performance
Light output > 2000 Lumens (12.7 mm aperture)
Lighting High Power White LEDs
Noise Rating <30 dB
Lighting Properties
LED Life 40,000 Hours D70
Color Temp 5000K typical
Intensity control 10-100%, variable
Electrical
Input voltage 100-240 VAC 50/60 Hz, Universal
Environmental
Operating temperature 5-40 °C
Cooling Fan cooled
Physical description
Dimensions 7.0 x 4.9 x 8.8 inch (W x H x L)
Weight 6 lbs
Certifications ETL, CE, RoHS
Warranty 2 years

Order No. Model No. Product Description USA Price Order
64-3033 LED-LS Jenner High Intensity LED Fiber Optic Illuminator (MI-LED) - LED fiber optic illuminator, no light guides or ring lights Login Login
110-240 V Systems
64-3031 LED-DG Jenner High Intensity LED Fiber Optic Illuminator (MI-LED) - LED fiber optic illuminator with 23" dual gooseneck w/ 28 mm focusing lenses Login Login
64-3030 LED-RL Jenner High Intensity LED Fiber Optic Illuminator (MI-LED) - LED fiber optic illuminator with 60 mm ID annular LED ring light Login Login
64-3032 LED-SG Jenner High Intensity LED Fiber Optic Illuminator (MI-LED) - LED fiber optic illuminator with 20" single light guide w/ 28 mm focusing lens Login Login
Accessories
64-3046 16085.1 Jenner High Intensity LED Fiber Optic Illuminator (MI-LED) - Focusing lens for goosneck, 28 mm Login Login
64-3043 16083RL Jenner High Intensity LED Fiber Optic Illuminator (MI-LED) - Fiber Optic Annular Ring Light, 36" Login Login
64-3044 16083 Jenner High Intensity LED Fiber Optic Illuminator (MI-LED) - Dual Fiber Optic Gooseneck, 23" Login Login
64-3045 16075 Jenner High Intensity LED Fiber Optic Illuminator (MI-LED) - Single Fiber Optic Gooseneck, 20" Login Login
