Perfusion System Pressure Kit

Product Summary

The latest accessory for Warner perfusion valve control systems is a simple and effective pressurization kit. The clever design of the universal reservoir plug allows for easy insertion into 5, 10, or 20 cc BD syringes. A 60 cc version is also available

  • Upgrades any gravity-feed perfusion system to a pressurized system
  • Universal reservoir plug fits 5, 10, and 20 cc syringes
  • Large reservoir plug available to fit 60 cc syringes
  • Dual regulators insure uniform pressure-driven fluid delivery

Precise and accurate flow, even at low flow rates, is insured using dual regulator controls. House air or nitrogen is kept at constant 20 PSI using the first regulator and the second regulator is used to set the flow pressure at 0.1 PSI accuracy. Regulators include a 5 um filter and have a large, easy to read pressure gauge mounted onto the output side.

Kits containing the universal reservoir plugs are designed to fit directly into 5, 10, or 20 cc BD brand syringes. Kits containing the large plug are designed to fit the BD 60 cc syringes.

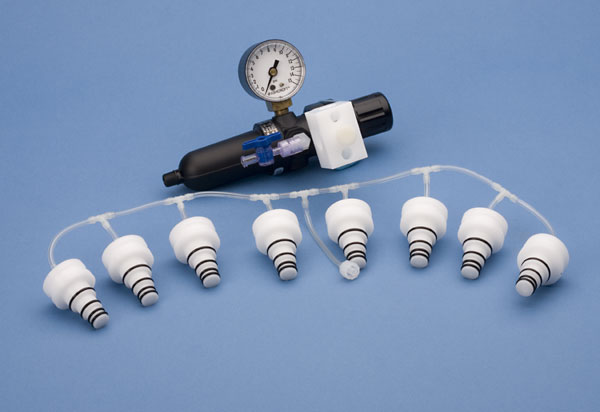

The VPP-8 includes; eight universal reservoir plugs pre-connected with tubing harness, dual pressure regulator/filter/gauges with rod mounting clamp, eight 10 cc BD syringes, eight stopcocks, and 25 feet of polyurethane tubing 4 mm I.D. x 6 mm O.D.

The VPP-6 includes everything listed above less two of the universal reservoir plugs, two 10 cc  syringes, and two stopcocks.

The VPP-8-6 includes; eight large reservoir plugs pre-connected with tubing harness, dual pressure regulator/filter/gauges with rod mounting clamp, eight 60 cc BD syringes, eight stopcocks, and 25 feet of polyurethane tubing 4 mm I.D. x 6 mm O.D.

The VPP-6-6 includes everything listed above for the VPP-8-6 less two of the large reservoir plugs, two 60 cc syringes, and two stopcocks.



Order No. Model No. Product Description USA Price Order
64-1711 VPP-6 Perfusion pressure kit for 6 channel valve controllers having 5, 10, or 20 cc solution reservoirs Login Login
64-1712 VPP-8 Perfusion pressure kit for 8 channel valve controllers having 5, 10, or 20 cc solution reservoirs Login Login
64-1720 VPP-6-6 Perfusion pressure kit for 6 channel valve controllers having 60 cc solution reservoirs Login Login
64-1721 VPP-8-6 Perfusion pressure kit for 8 channel valve controllers having 60 cc solution reservoirs Login Login
Accessories
64-1701 AIR-1 Ultra low noise air compressor, 120 VAC/60Hz Login Login
64-0220 FR-50 Flow regulating valve Login Login
64-0221 FR-55S Flow regulating valve, with on/off switch Login Login
64-1940 DWV Dedicated Workstation Vacuum Login Login
Replacement Parts

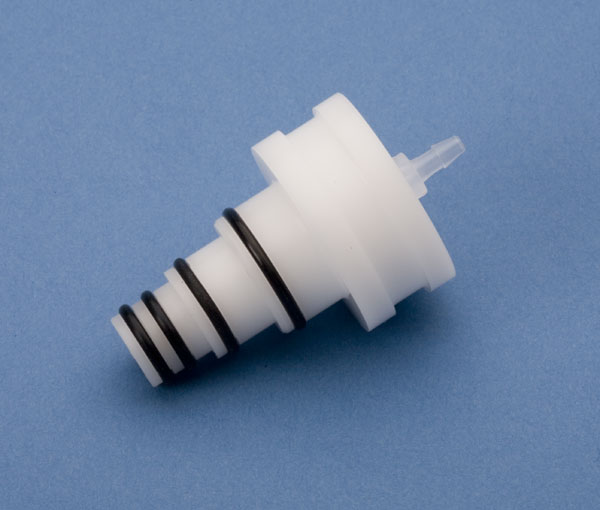

64-1713 VPP-1 Universal reservoir plug, fits 5, 10, and 20 cc BD syringes Login Login
64-1722 VPP-2 Large reservoir plug, fits 60 cc BD syringes Login Login
64-0163 SH-6/60 6 reservoir syringe holder with 60 cc syringes Login Login
64-0385 SH-8/60 8 reservoir syringe holder with 60 cc syringes Login Login
64-1714 PPT-25 Tubing, polyurethane, 4 x 6 mm (ID x OD), 25 ft Login Login
