Designed to bring heating and cooling to Warner's classic Series 20 recording and imaging chambers.
The PHC Series Heater/Cooler Jackets are designed to bring heating and cooling to our classic Series 20 Imaging and Recording Chambers. Accurate temperature control from 5° to 50°C can be achieved using the PHC Series jackets in concert with the SC-20 Dual In-line Solution Heater/Cooler and CL-200A or CL-100 Bipolar Temperature Controller. (An LCS-1 is also needed for the SC-20 water jacket.)
Heated or chilled water flows from one of the SC-20 flow lines into the PHC Series Jacket(which is in direct thermal contact with the Series 20 Chamber bottom coverslip). Perfusate is heated or cooled to the same temperature as the chamber by use of the second SC-20 flow line which is fed into the bath of the Series 20 chamber.

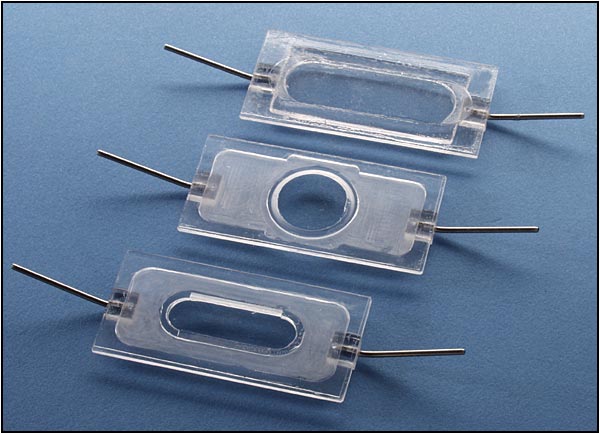

The PHC-1 is used for upright microscopes and provides a complete thermal barrier between the chamber-forming coverslip and the local environment. The PHC-2 and PHC-3 are designed for inverted microscopes and provide for either rectangular or round openings. (See specifications for chamber jacket compatibility with specific chambers.)

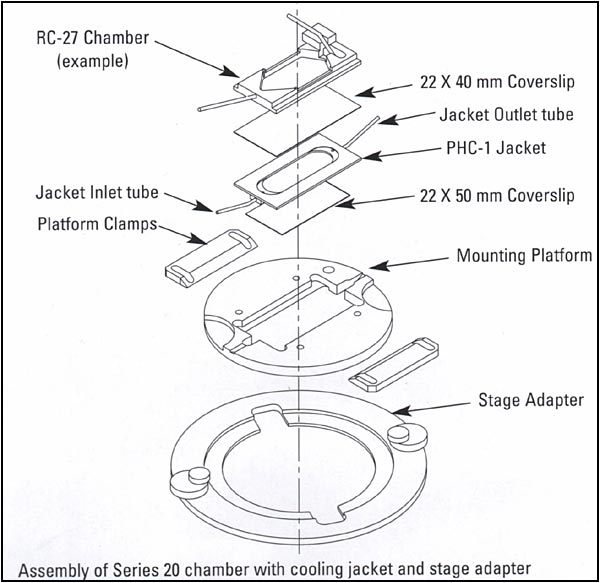

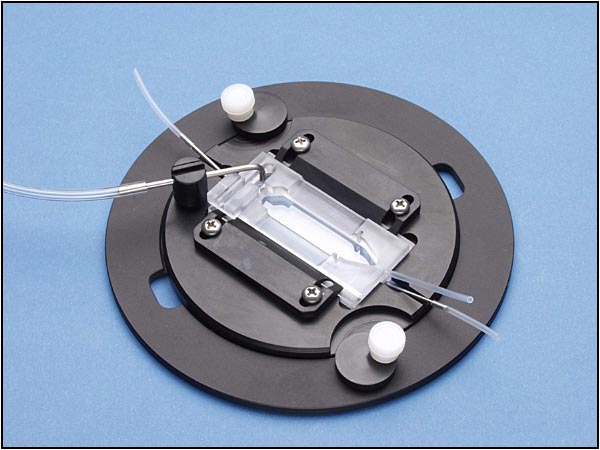

PHC Series Heater/Cooler Jackets are provided with a mounting platform, which replaces the standard platforms used with Series 20 chambers. The platform functions as a base for the jacket/chamber sandwich and provides the clamping pressure to make a tight seal. Mounting platforms are machined from black Delrin and are compatible with all Series 20 stage adapters.
All PHC Heater/Cooler Jackets are 0.04" (1 mm) thick.
|Model||Microscope||Series 20 Chambers||Aperture|
|PHC-1||Upright||RC-22, RC-22C, RC-24N, RC-26, RC-6G, RC-26GLP, RC-26Z, RC-27, RC-27N, RC-27NE, RC-27L, RC-28, RC-29||17.0 x 37 mm|
|PHC-2||Upright or Inverted||RC-22, RC-22C, RC-24N, RC-26, RC-26G, RC-26Z, RC-26GLP||15 mm diameter|
|PHC-3||Upright or Inverted||RC-27, RC-27N, RC-27NE||8.0 x 25 mm|
Customers from Europe and Australia can use the Multi Channel Systems - Online Shop to order Warner products or create quotes.
|Order No.||Model No.||Product Description||USA Price||Order|
|64-0354||PHC-1||Heater/Cooler jacket for Series 20 chambers (not compatible with inverted microscopes)||Login||Login|
|64-0355||PHC-2||Heater/Cooler jacket for diamond bath Series 20 chambers||Login||Login|
|64-0356||PHC-3||Heater/Cooler jacket for rectangular bath Series 20 chambers||Login||Login|
