(MFG-5) Microforge-Grinding Center

Product Summary

Glass micropipette polishing, shaping, tipping, bending, beveling, and grinding - all in one compact platform.



  • Rapid and easy switching between microforge and microgrinder by turning the tool manipulator
  • Precise, convenient movement controls for heater/grinder, pipette locations and optical focus
  • Universal pipette holder for one to seven barrel pipettes and 0-180 degree beveling
  • Up to 40X, long working distance objective and 10X eyepiece optics combination, plus scale eyepiece for precision measurement.
  • Adjustable, precision power supply for variable grinder speed and heating level
  • Pressurized air for pipette tip clearing, expanding, and cooling. Foot switch controllable

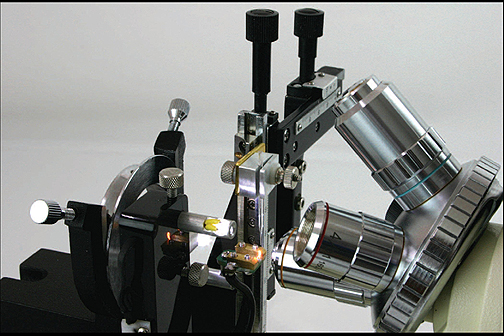

The MFG-5 microforge/grinding center is designed for precise and efficient modification of micropipette and multi-pipette tips. This unique apparatus combines a precision microforge with a full-function microgrinder in a compact platform.

The optical system of the MFG-5 is based on a high power, horizontally mounted binocular microscope. A precision focusing system, with a dual-axial pipette holder, can conveniently and precisely position single or multi-barrel pipettes. The pipette holder is capable of rotating through 180 degrees to allow a multitude of beveling angles and pipette bending positions.

The MFG-5 uses high quality optical components, which includes a 10x wide field eyepiece, and 4x, 10x/0.25, and 40x/0.6 long working distance plan achromatic objectives. The 10x wide field scale eyepiece can be used as an independent and accurate measurement tool. Two high-intensity LED.s provide a powerful light source.



An included foot switch, or a heat/speed adjustment dial, can be used to regulate the attached heater or grinder foot switch. The MFG-5A has a second foot switch for the regulation of pressurized air. Air from an external source is connected to the microforge/grinding center and when the foot switch is activated, is directed to an output channel. Pressure air from this source can be used for clearing a pipette of dust after grinding, or for expanding or cooling a pipette during forging.

The MFG-5 can be purchased comprised of the microforge only, the microgrinder only, or comprised of both components. For the latter system the microgrinder and the microforge mini-heater can be quickly and easily switched between components mounted on a single integrated tool manipulator. Finally, the MFG-5 can be combined with a PMP-102 or a PMP-107 micropipette/multipipette puller to assemble a complete micropipette production work station.



Precision Mciroforge/Grinding Center with Air pressure in/out ports. 220-240 VAC. CE. With: Precision micro platinum heater and micro diamond disc grinder controlled by 3-dimensional fine/coarse manipulator in horizontal binocular microscope platform.

Turnable Easy Clamp Pipette holder (without screw tighten) in 3-dimensioal minipulator. Pressure air in/output ports, in/out connectors tubing and control valve with extra foot switch

10x scale eyepieces, 4x 10x objective lenses

Microforge and grinding control Foot switch. Spare platinum heat wire x3, 3x 0.1um, 3x 0.5 um and 3x 1.0 um grade diamond grinding disks, special tubing, 1.5ml vial and connectors, syringes, polished and ground samples, cover and user's manual.

Pipette Movement Two-axial manipulator and coarse-fine focusing adjustment
Heater Movement Three-dimensional adjustment
Pipette Holder 180 degree turn-table for single or multipipette holding
Body Horizontal Binocular Microscope
Eyepiece 10x WF, Optional 10x Scaled
Objective Lenses 4x, 10x/0.25, 40x, Optional: 25x, 40x/0.6 LWD
Heater Platinum Wire
Light Two super bright LEDs
Air Input/Output Optional air jet foot switch, input/output tubing and connector
Accessory Extra foot switch
Power Supply 20W, 120/240VAC

Order No. Model No. Product Description USA Price Order
64-1612 MFG-5 Microforge Grinding Center Login Login
64-1610 MF-5 Microforge Login Login
64-1611 MG-5 Microgrinder Login Login
64-1617 MFG-5AE Microforge Grinding Center with Air 220/240 VAC Login Login
220-240 V Systems
64-1613 MFG-5A Microforge Microgrinding Center with Air Login Login
64-1616 MFG-5E Microforge Grinding Center 220/240 VAC Login Login
64-1614 MF-5E Microforge 220/240 VAC Login Login
64-1615 MG-5E Microgrinder 220/240 VAC Login Login
Accessories and Replacement Parts
64-3010 HC-F Platinum heating filament for MFG-5 Login Login
64-1647 10x Eyepiece WF for MF-5/MG-5 Login Login
64-1648 25x Objective (LWD: 4.8 mm) for MF-5/MG-5 Login Login
64-1649 40x Objective (LWD: 3.3 mm) for MF-5/MG-5 Login Login
