(RC-49MFSH) Perfusion Chamber with Field Stimulation

Product Summary

The latest member of our family of field stimulation chambers is designed to maximize electrode access.



  • O-Ring seal permits quick exchange of coverslips
  • Low profile design allows low entry angle electrodes
  • Platinum field stimulation electrodes
  • Uses popular 18 mm round coverslips
  • Heated platform

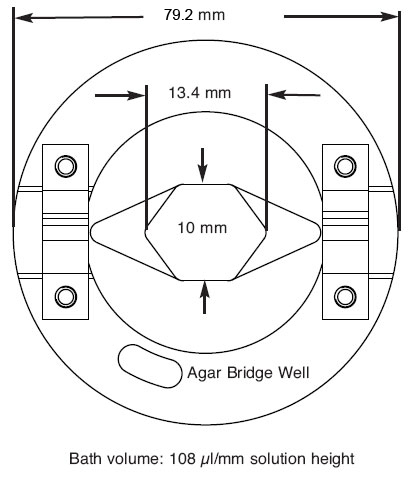

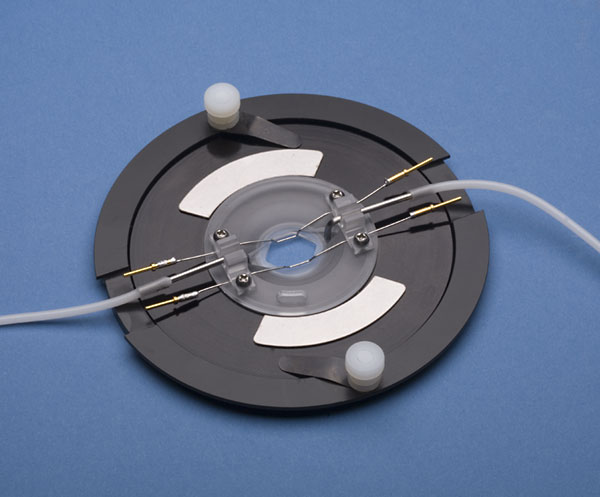

The RC-49MFSH is a chamber/platform assembly featuring a hybrid diamond/slotted bath shaped to promote laminar solution flow with field stimulation. The field stimulation electrodes are made from platinum, are terminated in 1 mm gold pins on both ends, and are easily replaced.

The chamber's natural, low volume laminar flow allows rapid exchange of solution facilitating drug application studies. O-rings on the chamber base form a quick seal on a standard 18 mm, #1.5 thickness coverslip.

The RC-49MFSH can be heated using our TC-324C / TC-344C temperature controllers, and uses Warner's Series 20 Stage Adaptersfor mounting onto a microscope.

Electric field stimulation is achieved by use of an optional STG Series or SIU-102 stimulator. Perfusion control is achieved by adding a VCS perfusion system. The DVW vacuum system can take care of the waste.

The RC-49MFSH includes a package of #1.5 thickness coverslips (CS-18R15), 10 feet of PE-160 polyethylene tubing, and spare o-rings.

Shown in a Leica Galvo Stage Adapter

Perfusion Chamber with Field Stimulation (RC-49MFSH)

Order No. Model No. Product Description USA Price Order
64-0714 CS-18R15 Round cover glass, #1.5 thickness, 18 mm, 100 pack Login Login
64-0756 PE-160/100 Polyethylene tubing, PE-160, 100 ft Login Login
64-0755 PE-160/10 Polyethylene tubing, PE-160, 10 ft Login Login
89-0706 STG4002-1.6mA Stimulus generator, 2-channel, 4000 Series, ±1.6 mA Login Login
89-0707 STG4002-160µA Stimulus generator, 2-channel, 4000 Series, ±160 µA Login Login
89-0708 STG4002-16mA Stimulus generator, 2-channel, 4000 Series, ±16 mA Login Login
64-1424 SIU-102 Bipolar stimulator, high current, non-isolated Login Login
64-1425 CC-102 Cable, BNC + male banana to 1 mm jack (for use with field stimulation chambers) Login Login

Order No. Model No. Product Description USA Price Order
65-0329 DS2A-MKII Monopolar stimulator, constant voltage, isolated Login Login
64-1933 SIU-202 Monopolar stimulator, constant current, isolated Login Login
65-0550 DS3 Monopolar stimulator, constant current, isolated Login Login
Chamber
64-1725 RC-49MFSH Magnetic Imaging / recording chamber with removable electrodes and heating elements Login Login
Stimulus Isolator
89-0706 STG4002-1.6mA Stimulus generator, 2-channel, 4000 Series, ±1.6 mA Login Login
89-0707 STG4002-160µA Stimulus generator, 2-channel, 4000 Series, ±160 µA Login Login
89-0708 STG4002-16mA Stimulus generator, 2-channel, 4000 Series, ±16 mA Login Login
64-1424 SIU-102 Bipolar stimulator, high current, non-isolated Login Login
64-1425 CC-102 Cable, BNC + male banana to 1 mm jack (for use with field stimulation chambers) Login Login
Temperature Control
64-2401 TC-344C Heater controller, dual channel, 110-230 VAC, 50/60Hz Login Login
64-2400 TC-324C Heater controller, single channel, 110-230 VAC, 50/60Hz Login Login
64-0106 CC-28 Cable assembly for heater controllers to platform Login Login
64-0107 TA-29 Cable with bead thermistor Login Login
64-0274 RH-2 Heater elements for Warner chambers and platforms, 2 pack Login Login
Perfusion and Waste Management
64-1940 DWV Dedicated Workstation Vacuum Login Login
Accessories and Replacement Parts
64-1710 SE-49 Replacement stimulation electrodes for model RC-49FS chamber, set of 2 Login Login
64-0714 CS-18R15 Round cover glass, #1.5 thickness, 18 mm, 100 pack Login Login
64-0755 PE-160/10 Polyethylene tubing, PE-160, 10 ft Login Login
