Specialized Tools for Electrophysiology and Cell Biology Research

Stage Adapters for Series 20 & Series 30 Platforms

Click to enlarge

Product Summary

Aluminum or Black Delrin® stage adapters connect Series 20 and Series 30 platforms and components with all major brand microscope stages.

  • The most popular models now in aluminum
  • Adapts Warner products to all microscope stages
  • Designed to fit Series 20 and Series 30 components
  • Beautifully machined in Black Delrin® or Type 6061 aluminum
  • High tolerance flatness ideal for high NA imaging
  • Aluminum adapters sealed with black anodize to increase durability and eliminate reflections

Stage Adapters are designed to allow the mounting of Warner imaging and recording products onto a microscope.

We have a wide range of adapters to fit microscope stages from Nikon, Olympus, Zeiss, and Leica. We also have adapters compatible with 3rd party stages from Burleigh, Prior & Ludl, Marzhauser, and others. Finally, we have stage adapters designed to fit into a standard multiwell stage insert. All of our stage adapters are available for Warner Series 20 and Series 30 components.

Adapters machined from 6061 aluminum provide an enhanced degree of flatness, making them ideal for high NA microscopy. Adapters machined from Black Delrin® provide good thermal isolation from the microscope stage.

All platforms (e.g., Series 20, Series 30), the QE-1 and the DH-35, DH-35iL, and DH-40iL microincubators rest upon a 38 mm lip which surrounds the central opening. Platforms and bases are secured using two plastic button clamps.

Series 20 and Series 30 Stage Adapters each perform exactly the same role with the difference between the two being the size of the internal cutout. Specifically, a Series 30 stage adapter has a larger ID to accommodate the larger diameter Series 30 components. The OD of any similarly named stage adapters remains the same.

Note to Zeiss Axiovert users: Series 20 Platforms fit directly into the Zeiss slide frame (Zeiss p/n 471719) which mounts on the Zeiss 211 x 230 Specimen Stage.

Selecting a Stage Adapter

Consult the table below to identify stage adapters compatible with your microscope stage. Generally speaking, the table lists dimensions that should match the cutout in your microscope stage. Illustrations for the most common stage adapters, along with their dimensions, are also presented below and also in the Product Specs window above.

If your stage is not listed, or if you have questions on adapter compatibility, please contact our technical staff. Custom or modified versions are available.

Stage Adapter Lookup Table



The table below lists stage adapters known to be compatible with the most common microscope stages. However, since each microscope can support many stages, you should compare the adapter dimensions to the stage cutout before ordering.

Stage Manufacturer Adapter Dimensions Series 20 Stage Adapters Order Number Series 30 Stage Adapters Order Number
Warner 11 cm diameter SA-OLY/2-AL 64-2411 SA-30/OLY2 64-0325
Nikon 10.8 cm diameter SA-NIK-AL 64-2410 SA-30NIK 64-0322
9 x 13 cm SA-20TS/100 64-0340 SA-30TMS/9 64-0324
12.7 x 11 cm SA-20UU-AL 64-2412 SA-30UU 64-0380
23.75 x 15.65 cm

SA-20Ti
This does not fit the newer Ti2 stages from Nikon.(see below)

 64-1744

SA-30Ti
This does not fit the newer Ti2 stages from Nikon.(see below)

 64-1745
23.6 x 15.5 cm

SA-20Ti-2
Fits the newer Ti2 stages from Nikon.

 64-3073

SA-30Ti-2
Fits the newer Ti2 stages from Nikon.

 64-3074
12.7 x 8.5 cm

SA-20MW-AL-N
Fits the newer MW stages from Nikon.

 64-2420

SA-30MW-AL-N
Fits the newer MW stages from Nikon.

 64-2421
Olympus 12.7 x 11 cm SA-20UU-AL 64-2412 SA-30UU 64-0380
11.0 cm diameter SA-OLY/2-AL 64-2411 SA-30/OLY2 64-0325
Leica 16.5 x 10 cm SA-20LZ-AL 64-2413 SA-30LZ 64-0326
14.99 x 14.99 cm SA-20L3P 64-0301 SA-30L3P 64-0328
9.66 cm diameter SA-20GALVOZ
Leica insert #158004118 is needed to mount this adapter to the Galvo stage.		 64-0376 SA-30GALVOZ
Leica insert #158004118 is needed to mount this adapter to the Galvo stage.		 64-0377
Zeiss 10.97 x 15.98 cm SA-20KZ-AL 64-2415 SA-30KZ-AL 64-2418
16.5 x 10 cm SA-20LZ-AL 64-2413 SA-30LZ 64-0326
12.7 x 13 cm SA-20UUZ 64-0336 SA-30UUZ 64-0379
12.7 x 15.52 cm SA-20UU/ZX 64-1749 SA-30UU/ZX call
14.99 x 14.99 cm SA-20L3P 64-0301 SA-30L3P 64-0328
Prior & Ludl 16 x 11 cm SA-20PL 64-0299 SA-30PL 64-1748
16 x 11 cm SA-20PLI
Discontinued
See SA-20PLIXR-AL		 - SA-30PLI
Discontinued
See SA-30PLIXR		 -
15.95 x 10.95 cm SA-20PLIXR-AL 64-2414 SA-30PLIXR 64-1913
Burleigh Gibraltar 11.0 cm diameter
(steel top stage only)		 SA-OLY/2-AL 64-2411 SA-30/OLY2 64-0325
10.96 cm diameter SA-OLY/3 64-0386 SA-30/OLY3 call
Marzhauser 10.97 x 15.98 cm SA-20KZ-AL 64-2415 SA-30KZ-AL 64-2418
Scientifica 11.0 cm diameter SA-OLY/2-AL 64-2411 SA-30/OLY2 64-0325
Multiwell Stages 12.8 x 8.6 cm

SA-20MW-AL

 64-2416

SA-30MW-AL

 64-2417
12.7 x 8.5 cm

SA-20MW-AL-N
Fits the newer MW stages from Nikon.

 64-2420

SA-30MW-AL-N
Fits the newer MW stages from Nikon.

 64-2421
HEKA ElProScan 10.97 x 15.98 cm SA-20KZ-AL 64-2415 SA-30KZ-AL 64-2418

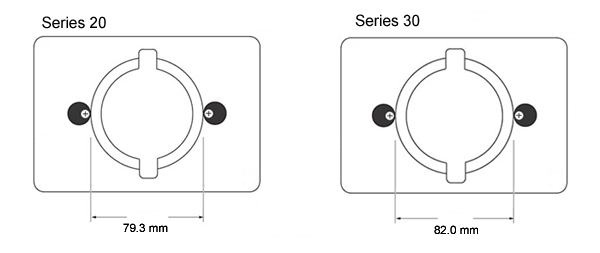

Outer dimensions of the adapters are the same for both Series 20 and Series 30 models,
it's the inner diameter of the Series 30 adapters which is larger.

Stage Adapters for Series 20 & Series 30 Platforms



Click on Image to Enlarge
Stage Adapters for Series 20 & Series 30 Platforms

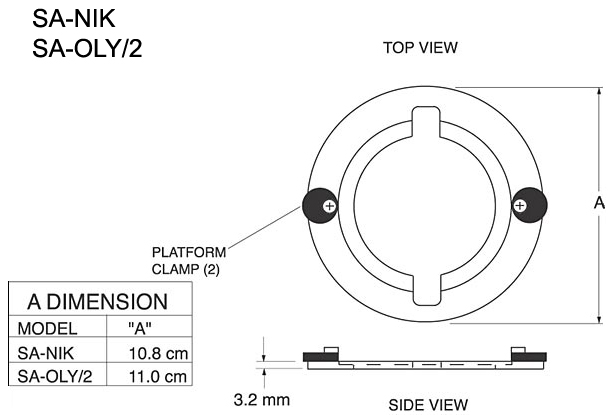

SA-NIK-AL

 Order 64-2410

SA-30NIK

 Order 64-0322

SA-OLY/2-AL

 Order 64-2411

SA-30/OLY2

 Order 64-0325

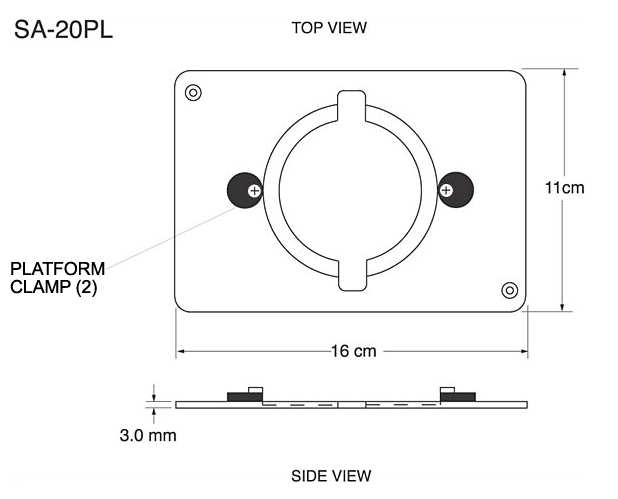

SA-20PL stage adapter

SA-20PL

 Order 64-0299

SA-30PL

 call

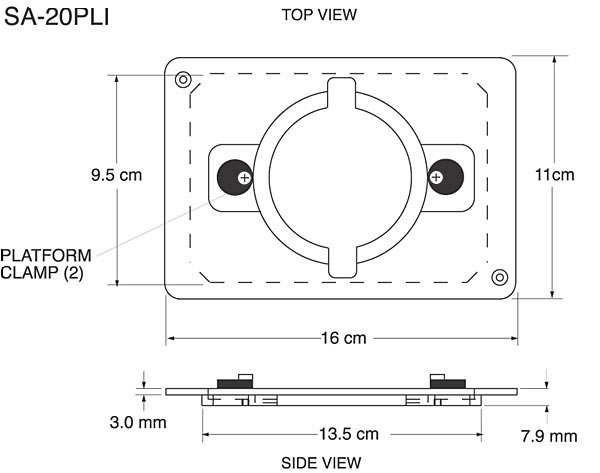

SA-20PLI stage adapter

SA-20PLI

 Now SA-20PLIXR-AL (64-2414)

SA-30PLI

 Now SA-30PLIXR (64-1913)

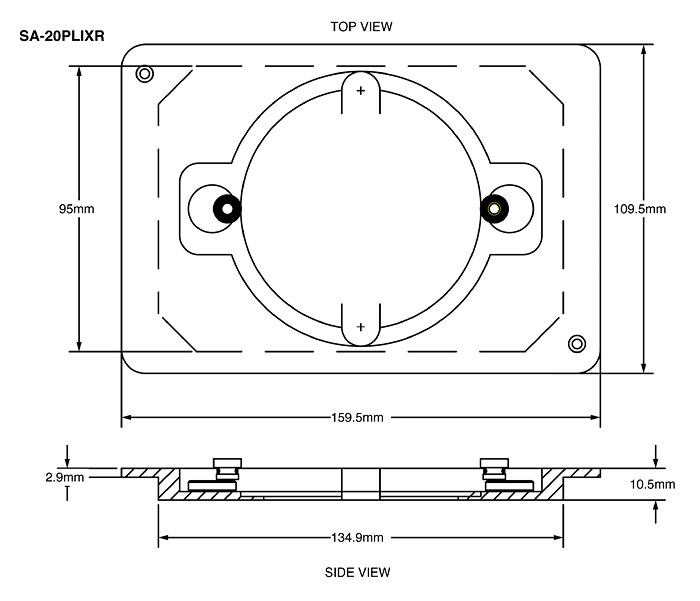

SA-20PLIXR stage adapter

SA-20PLIXR-AL

 Order 64-2414

SA-30PLIXR

 Order 64-1913

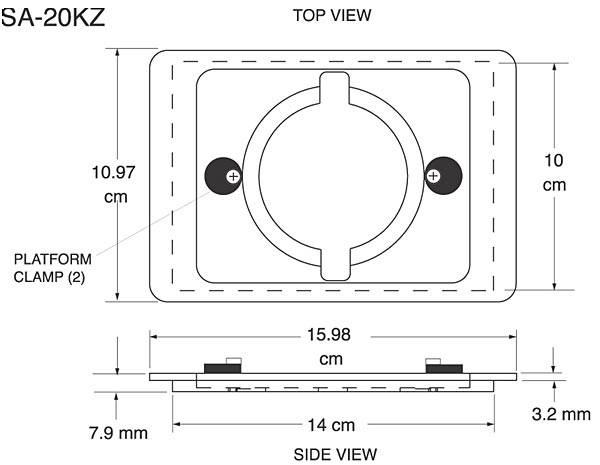

SA-20KZ-AL stage adapter

SA-20KZ-AL

 Order 64-2415

SA-30KZ-AL

 Order 64-2418
SA-20LZ-AL stage adapter

SA-20LZ-AL

 Order 64-2413

SA-30LZ

 Order 64-0326

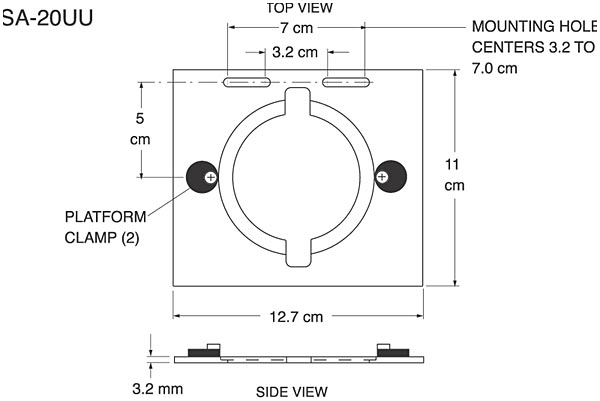

SA-20UU stage adapter

SA-20UU-AL

 Order 64-2412

SA-30UU

 Order 64-0380

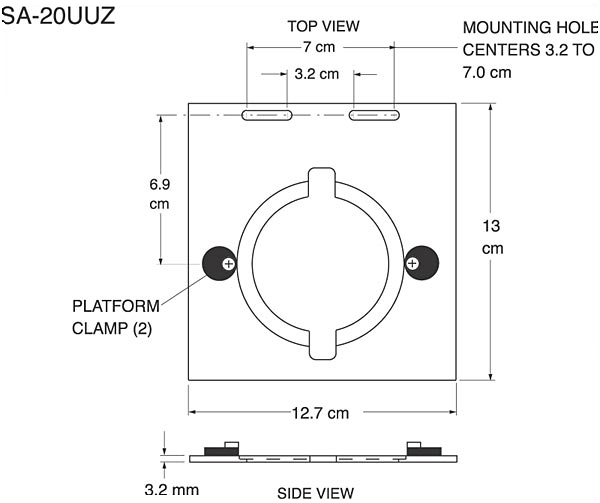

SA-20UUZ stage adapter

SA-20UUZ

 Order 64-0336

SA-30UUZ

 Order 64-0379

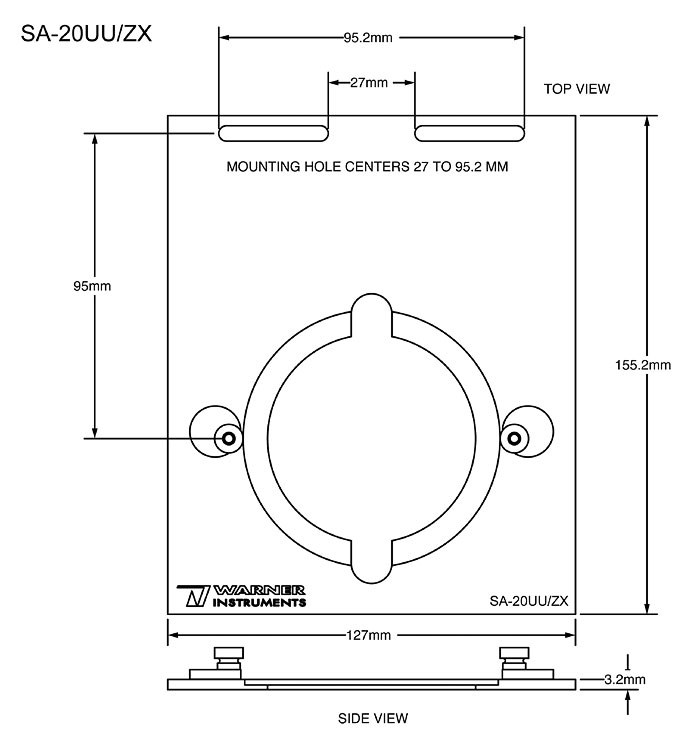

Sa-20UU/ZX stage adapter

SA-20UU/ZX

 Order 64-1749

SA-30UU/ZX

 call
SA-20L3P stage adapter

SA-20L3P

 Order 64-0301

SA-30L3P

 Order 64-0328

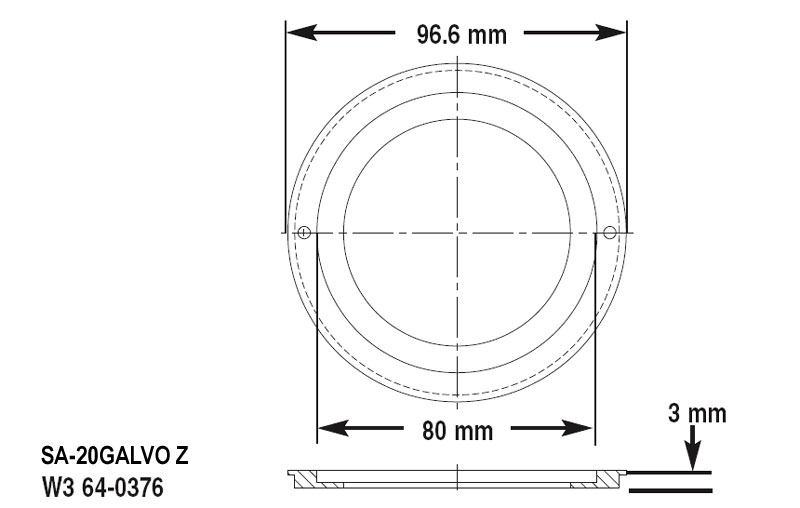

SA-20GALVOZ stage adapter

SA-20GALVOZ

 Order 64-0376

SA-20GALVOZ

 Order 64-0377

Leica insert #158004118 is needed
to mount this adapter
to the Super Galvo stage.

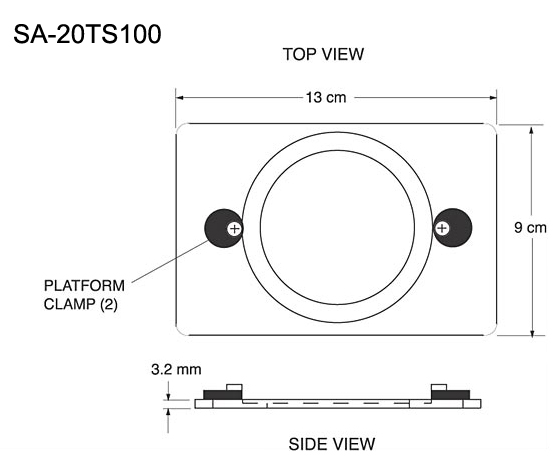

SA-20TS/100

SA-20TS/100

 Order 64-0340

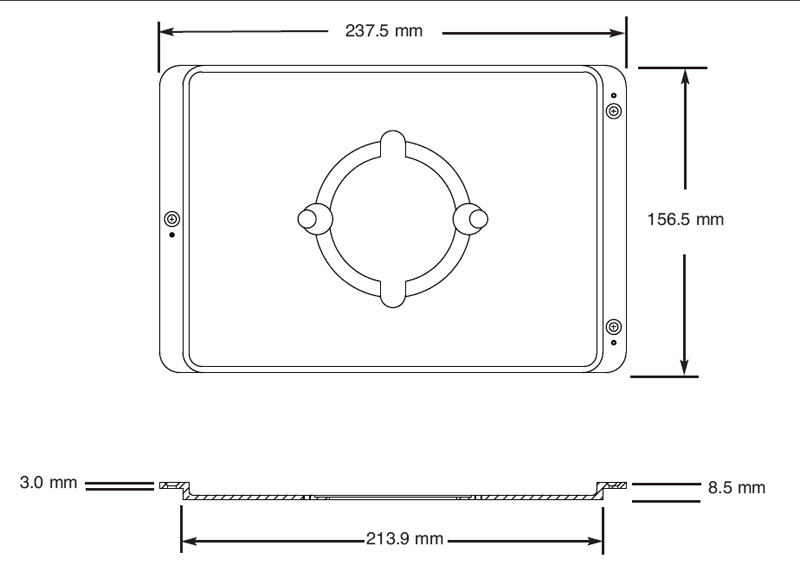

SA-20Ti stage adapter



SA-20Ti

 Order 64-1744

SA-30Ti

 Order 64-1745

Does not fit the newer Ti2 stages from Nikon.

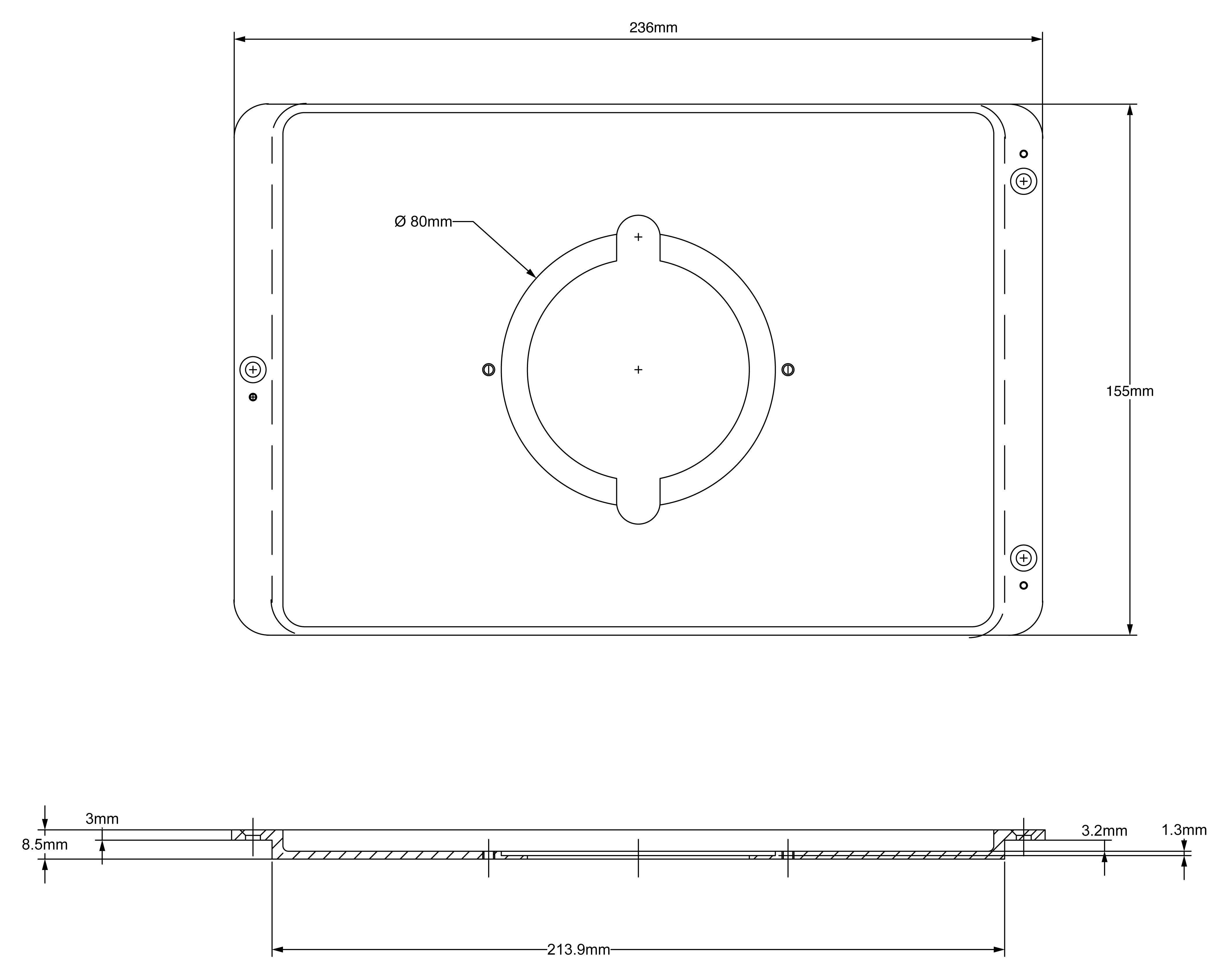

SA-20Ti-2

 Order 64-3073

SA-30Ti-2

 Order 64-3074

Fits the newer Ti2 stages from Nikon

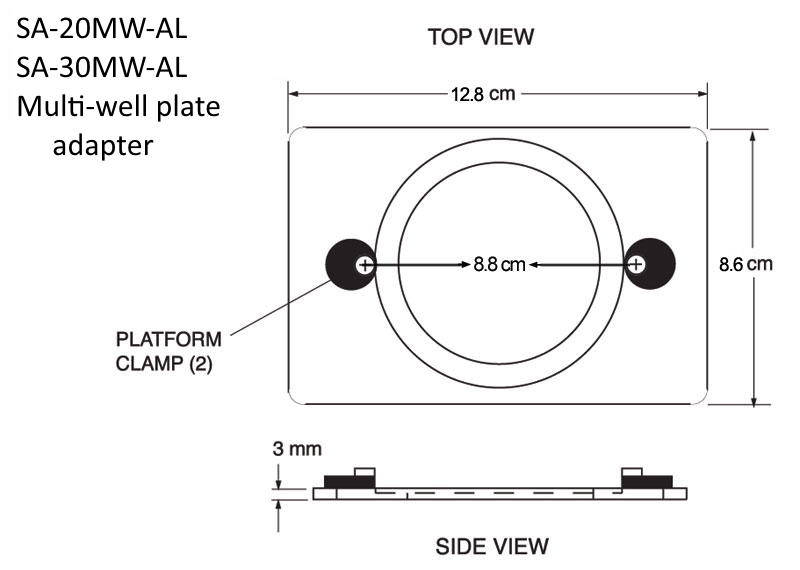

SA-20MW-AL stage adapter

SA-20MW-AL

 Order 64-2416

SA-30MW-AL

 Order 64-2417

Does not fit the newer MW stages from Nikon.

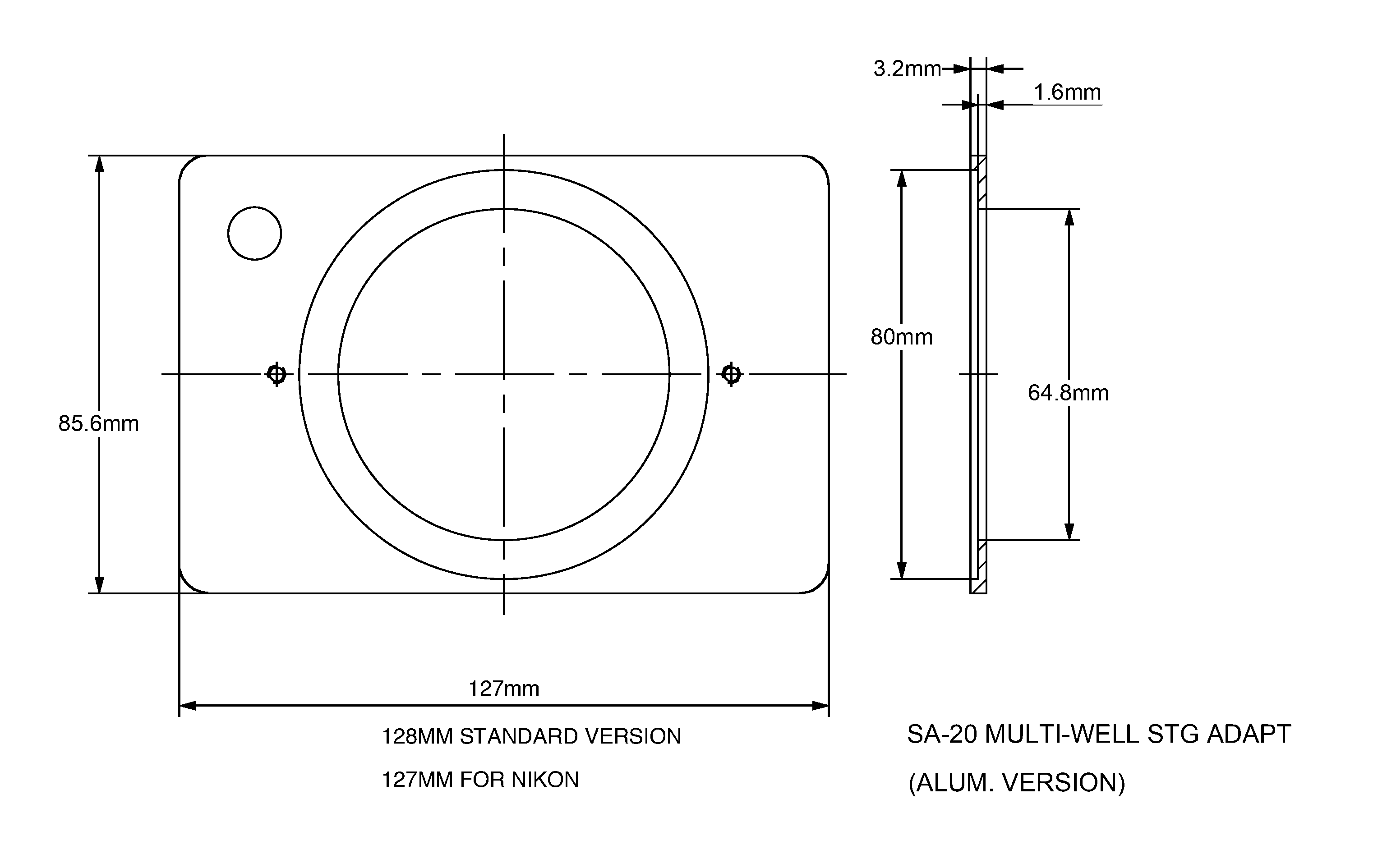

SA-20MW-AL-N



SA-20MW-AL-N

 Order 64-2420

SA-30MW-AL-N

 Order 64-2421

Fits the newer MW stages from Nikon.

Customers from Europe and Australia can use the Multi Channel Systems - Online Shop to order Warner products or create quotes.

Order No. Model No. Product Description USA Price Order
Series 20 Stage Adapters - Nikon Compatible
64-2410 SA-NIK-AL Series 20 stage adapter, 10.8 cm round, aluminum Login Login
64-2412 SA-20UU-AL Series 20 stage adapter for upright microscopes, 12.7 x 11 cm, aluminum Login Login
64-0340 SA-TS100 Series 20 adapter, 9 x 13 cm, rectangular Login Login
64-1744 SA-20Ti Series 20 insert for Ti-S-ER motorized stage, 23.75 x 15.56 cm Login Login
64-3073 SA-20Ti-2 Series 20 adapter for Nikon Ti-2 stage Login Login
64-2420 SA-20MW-AL-N Series 20 Multiwell stage adapter for Nikon stages Login Login
64-3074 SA-30Ti-2 Series 30 adapter for Nikon Ti-2 stages Login Login
Series 20 Stage Adapters - Olympus Compatible
64-2412 SA-20UU-AL Series 20 stage adapter for upright microscopes, 12.7 x 11 cm, aluminum Login Login
64-0386 SA-OLY/3 Series 20 stage adapter for Burleigh Gibraltar with aluminum top Login Login
64-2411 SA-OLY2-AL Series 20 stage adapter, 11.0 cm round, aluminum Login Login
Series 20 Stage Adapters - Burleigh Gibraltar Compatible
64-0386 SA-OLY/3 Series 20 stage adapter for Burleigh Gibraltar with aluminum top Login Login
Series 20 Stage Adapters - Zeiss Compatible
64-2415 SA-20KZ-AL Series 20 stage adapter aluminum for K-frame inserts Login Login
64-1749 SA20UU/ZX Series 20 stage adapter for Zeiss Long Login Login
64-2413 SA-20LZ-AL Series 20 stage adapter, 11.0 cm round, aluminum Series 20 stage adapter, fits L stages, 16.5 x 10.0 cm, aluminum Login Login
64-0301 SA-20L3P Series 20 stage adapter for Zeiss Leitz DMIRBE/E with 3-plate mechanical stage Login Login
64-0336 SA-20UUZ Series 20 stage adapter for Zeiss LSM-510 Login Login
Series 20 Stage Adapters - Leica Compatible
64-2413 SA-20LZ-AL Series 20 stage adapter, 11.0 cm round, aluminum Series 20 stage adapter, fits L stages, 16.5 x 10.0 cm, aluminum Login Login
64-0376 SA-20GALVOZ Series 20 stage adapter for Leica Galvo Z stage Login Login
Series 20 Stage Adapters - Prior & Ludl Compatible
64-2414 SA-20PLIXR-AL Series 20 stage adapter aluminum for Prior and Ludl XR Login Login
64-0299 SA-20PL Series 20 stage adapter for Prior and Ludl motorized stage on upright microscope Login Login
64-1912 SA-20PLIXR Series 20 stage adapter for Prior and Ludl XR Login Login
Series 20 Stage Adapters - Warner Hybrid Stage
64-2411 SA-OLY2-AL Series 20 stage adapter, 11.0 cm round, aluminum Login Login
Adapters for Special Microscope Stages
64-2416 SA-20MW-AL Series 20 Multiwell stage adapter aluminum Login Login
64-2417 A-30MW-AL Series 30 Multiwell stage adapter aluminum Login Login
Series 30 Stage Adapters - Nikon Compatible
64-2421 SA-30MW-AL-N Series 30 Multiwell stage adapter for Nikon stages Login Login
64-0380 SA-30UU Series 30 stage adapter for Use with Nikon E400 / E600 / E800, Olympus BX-40 / BX-50 Login Login
64-1745 SA-30Ti Series 30 Stage Insert for Nikon Ti-S-ER motorized stage Login Login
64-0322 SA-30NIK Series 30 stage adapter, fits Nikon Diaphot / TE200 / TE300 Login Login
Series 30 Stage Adapters - Olympus Compatible
64-0380 SA-30UU Series 30 stage adapter for Use with Nikon E400 / E600 / E800, Olympus BX-40 / BX-50 Login Login
64-0325 SA-30/OLY2 Series 30 stage adapter, fits Olympus IMT2 / IX-50 / IX-70 / BX-50WI and Warner Hybrid Stage Login Login
Series 30 Stage Adapters - Zeiss Compatible
64-0326 SA-30LZ Series 30 stage adapter, fits Zeiss Axiovert 211 x 230 specimen stage, Leica Dmirbe/E with Plane Stage Login Login
64-2418 SA-30KZ-AL Series 30 stage adapter, fits K stages, aluminum Login Login
64-0379 SA-30UUZ Series 30 stage adapter for Zeiss LSM510 Login Login
Series 30 Stage Adapters - Leica Compatible
64-0377 SA-30GALVOZ Series 30 stage adapter for Leica Galvo Z Stage Login Login
64-0326 SA-30LZ Series 30 stage adapter, fits Zeiss Axiovert 211 x 230 specimen stage, Leica Dmirbe/E with Plane Stage Login Login
64-1456 SA-30GALZi Series 30 stage adapter for Leica Galvo Z inverted stage Login Login
Series 30 Stage Adapters - Prior & Ludl Compatible
64-1748 SA-30PL Series 30 stage adapter for Prior and Ludl Login Login
64-1913 SA-30PLIXR Series 30 stage adapter for Prior and Ludl XR Login Login
Series 30 Stage Adapters - Warner Hybrid Stage
64-0325 SA-30/OLY2 Series 30 stage adapter, fits Olympus IMT2 / IX-50 / IX-70 / BX-50WI and Warner Hybrid Stage Login Login
Accessories and Replacement Items
64-1604 Stage adapter accessory kit (nylon screws and black buttons) Login Login
