(QE-1) Quick Exchange Platform for 35-40 mm dishes

Product Summary

A versatile base for the RC-40 and QR-40 Series chambers, as well as many popular 35 mm glass bottom dishes.

  • Quick exchange of Series 40 (RC and QR) chambers or 35 mm glass bottom dish
  • Includes adapters for Willco Wells, Corning, Falcon, WPI, and MatTek dishes
  • Open design for easy access to chamber or dish
  • Compatible with Series 20 stage adapters
  • Removable perfusion and suction tube holders
  • Resistive heating elements for temperature control
  • Magnetic stainless steel shelf permits use of magnetic holders

This platform is at home on both upright and inverted microscopes and includes resistive heating elements.

The base has a 25 mm diameter aperture and magnetic stainless steel shelves along the perimeter of the QE-1 permits the use of Warner's MCK-1 Magnetic Clamp Kit, which includes a variety of holding tools.

Removable perfusion and suction tubes allow perfusion in any of our RC or QR Series 40 imaging chambers, or in compatible 35 mm dishes. Adapter rings for Corning, Falcon, Willco, WPI, and MatTek 35 mm dishes are supplied to ensure a close fit in the QE-1 platform.

Suction and perfusion tubes feature horizontal position set-screw locks and adjustable presets on the vertical for setting the bath height. These adjustments allow easy and reproducible re-positioning of these tubes.

A redesigned suction tube eliminates tidal action and fluid flutter, making aspiration very quiet. Perfusion control can be achieved by adding a VC-8 or VC-6 perfusion system, the DVW vacuum system can take care of the waste.

The QE-1 mounts to a microscope stage using a Series 20 stage adapter. Adapter rings 35 mm dishes from Corning, MatTek, Nunc, Wilco, and WPI are supplied to ensure good thermal contact with the QE-1.

AR-4 Ring Dimensions

Color Weight ID OD
Gold 1.3 g 38.96 mm 40.61 mm
Green 3.2 g 35.94 mm
Blue 2.7 g 33.81 mm
Red 2.1 g 37.44 mm
Black 3.4 g 35.46 mm
Silver 3.5 g 35.41 mm

Specifications

Material Anodized Aluminum with Four Magnetic Side Plates
OD of Outer Edge 78.8 mm
OD of Aperture 25.0 mm
Tubing Post Height 21.2 mm
Aspiration Tube 16 Gauge, Type 316 SS
Perfusion Tube 18 Gauge, Type 316 SS
Weight 66.6 g

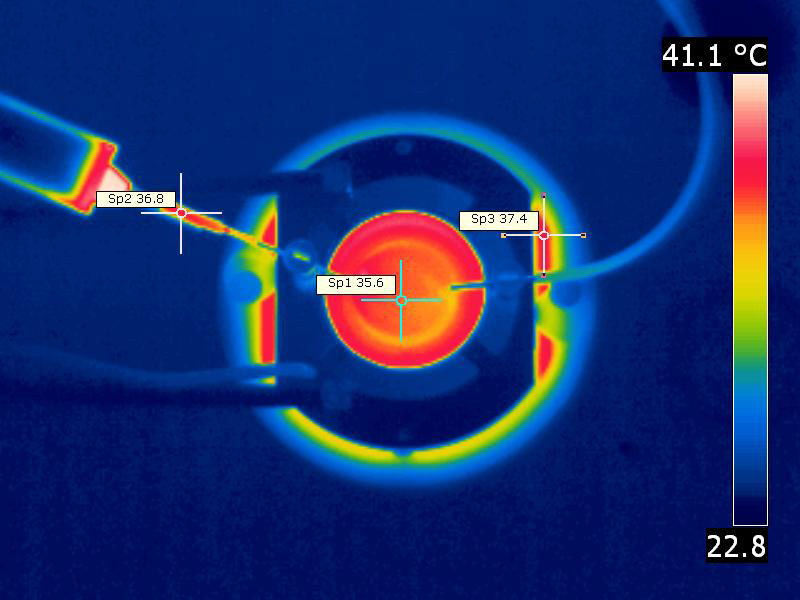

Infrared Image

Quick Exchange Platform for 35-40 mm dishes (QE-1)
QE-1 Quick Exchange Platform with SH-27B In-Line Heater: heating with perfusion.
Conditions:
Ambient Temperature 21.5C
Relative Humidity 62.3%
TC-344C Temperature Controller:
QE-1 Set Temperature 38C
SH-27B Set Temperature 40C
Flow Rate 2ml/min.
Order No. Model No. Product Description USA Price Order
64-1403 ST-1QE1 Suction Tube, Micro Slit Design for QE-1 quick exchange platform Login Login
64-1404 PT-QE1 Perfusion tube for QE-1 quick exchange platform Login Login
64-0357 MCK-1 Magnetic clamp kit for Series 20 chambers Login Login
64-0351 AR-6 Adapter ring kit for DH-35i or QE-1, fits Willco, Corning, and Falcon dishes, set of 6 Login Login
64-0106 CC-28 Cable assembly for heater controllers to platform Login Login
64-2400 TC-324C Heater controller, single channel, 110-230 VAC, 50/60Hz Login Login
64-2401 TC-344C Heater controller, dual channel, 110-230 VAC, 50/60Hz Login Login
64-0102 SH-27B In-line solution heater Login Login
64-0103 SF-28 Slow flow in-line solution heater Login Login
64-0274 RH-2 Heater elements for Warner chambers and platforms, 2 pack Login Login
64-1507 RPC-2 Replacement clamps for DH-35i, DH-40iL, QE-1 Login Login
64-3055 Replacement perfusion and suction tube positioning kit, QE-1 Login Login
