PM Series Magnetic Heated Platforms

Product Summary

Warner magnetic platforms function as base for the Series 20 chambers and provide easy clamping to make a seal between the chamber and coverslip.



  • Allows small entry angles ideal for patch recordings
  • No tools needed to secure chamber to platform
  • Available for most Series 20 Chambers
  • Magnetic stainless steel allows use of magnetic holders
  • Compatible with all series 20 stage adapters
  • Platforms come with heating elements

Warner magnetic platforms function as a base for Series 20 chambers and provide clamping to make a seal between the chamber and coverslip. Platforms are machined from aluminum and finished with a black anodize. This provides excellent heat conductivity and minimizes stray light reflectance. Platform designs are optmimized to provide maximum heat transfer to the coverslip while affording excellent access for objectives.

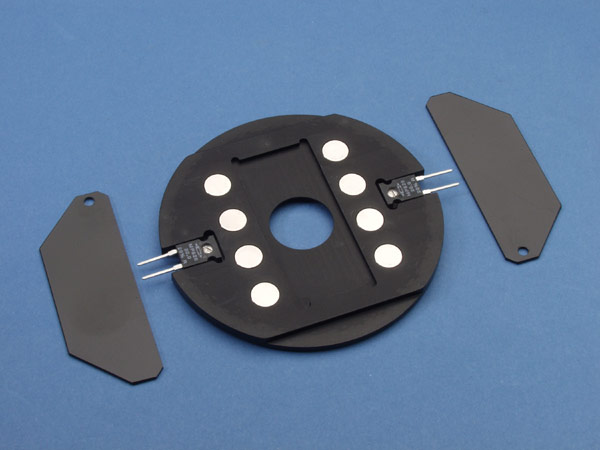

64-1526_PM-1_OPEN Four magnets on each side of the platform are used to attach the hold-down clamps. Magnets are nickel plated, this coating allows for exceptional resistance from corrosion. Clamps consist of ferromagnetic stainless steel plates that allow the use of magnetic devices. No screws are needed for assembly, permitting rapid replacement of the chamber enen in a darkened room.



Resistive heating is included in all platform models. Thermal regulation is provided by Warner's TC-344C and TC-324C temperature controllers and a CC-28 cable interface. Heating of perfusate is achieved using our SH-27B or SF-28 In-line solution heaters.

Stage adapters are available for all major microscopes. Custom or modified stage adapters are also available. Call our Technical Support Department for details.

Information on the proper placement of the feedback resistor in the platform body can be found in the Support Documents Section of this page.

Platform Images

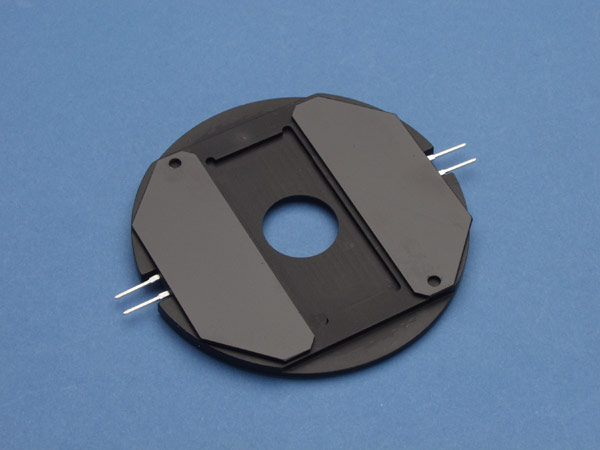

PM-1 Platform

PM-1 Platform

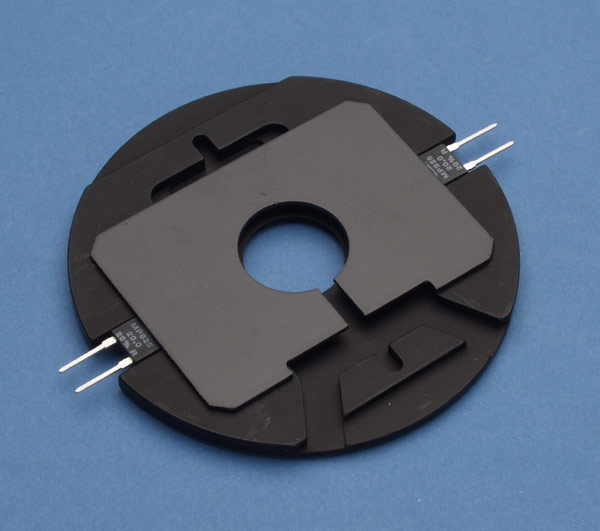

PM-2 Platform

PM-2 Platform

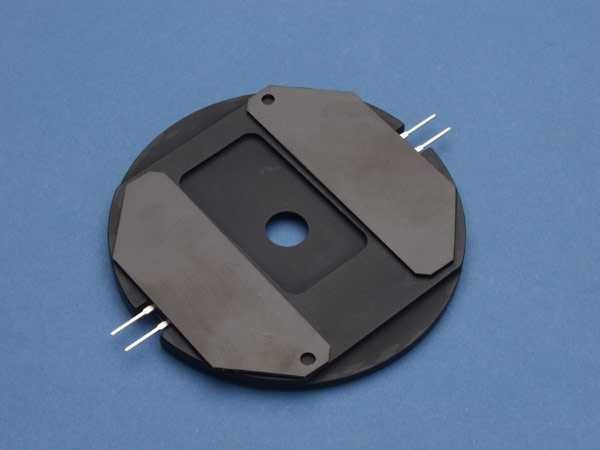

PM-3 Platform

PM-3 Platform

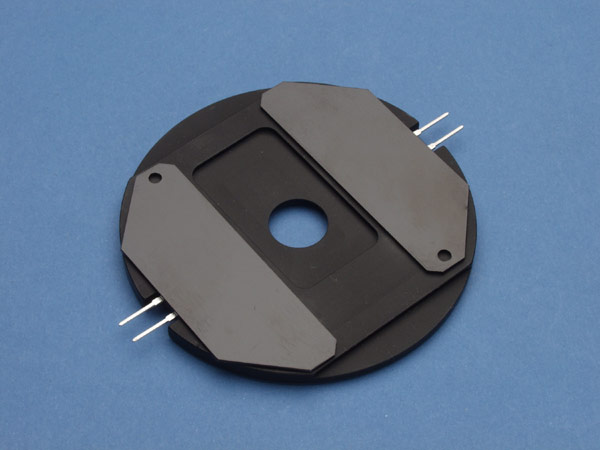

PM-4

PM-4 Platform

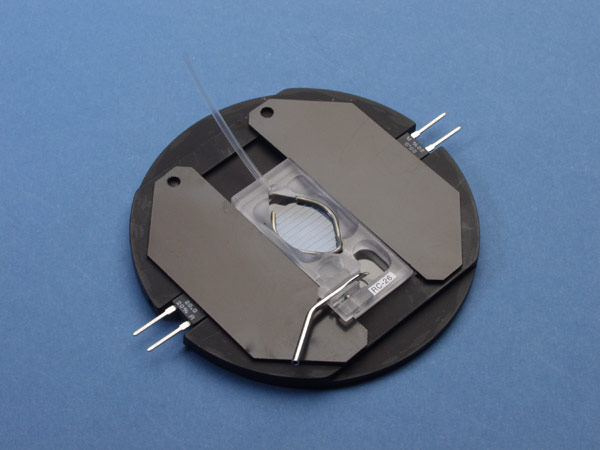

PM-1 with Chamber

PM-1 with Chamber

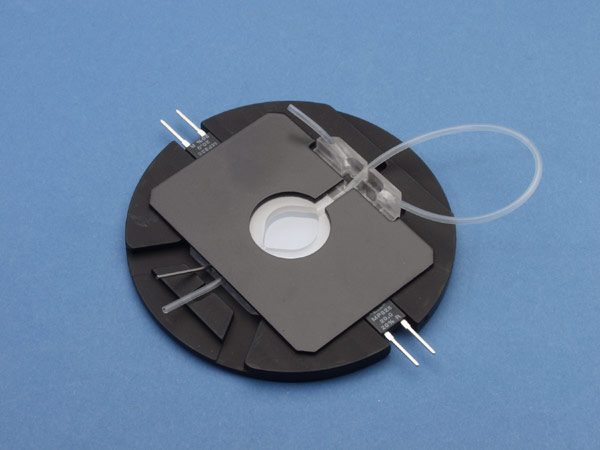

PM-2 with Chamber

PM-2 with Chamber

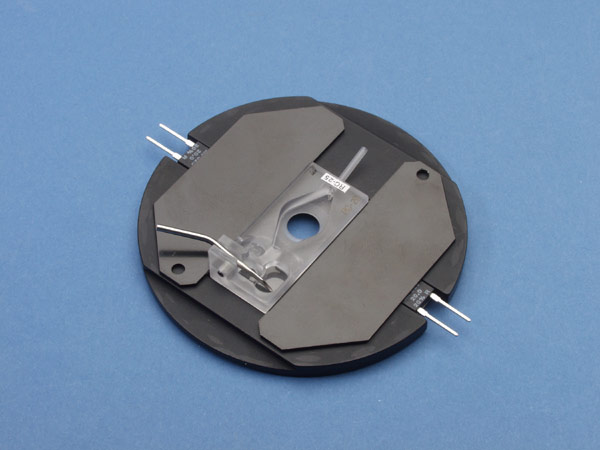

PM-3 with Chamber

PM-3 with Chamber

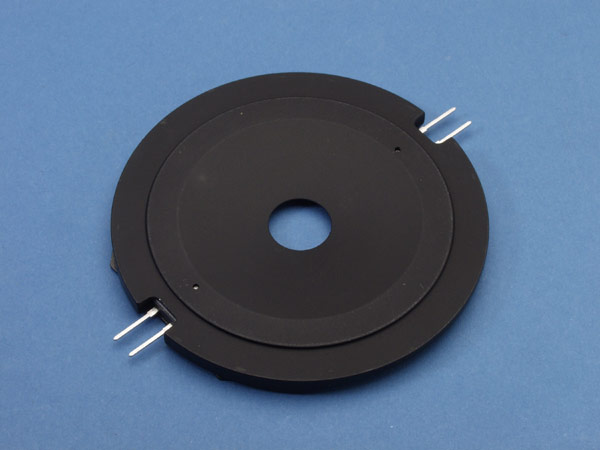

PM-4 Inverted

PM-4 Inverted

PM-5 Platform

PM-5 Platform

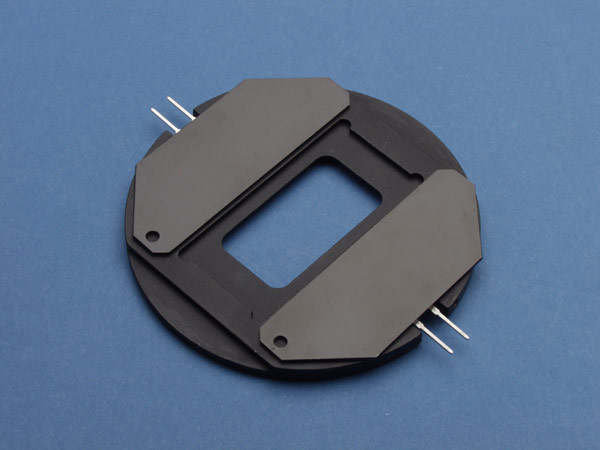

PM-6 Platform

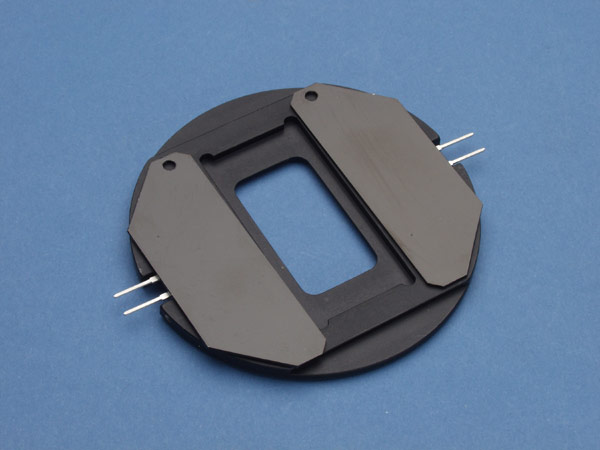

PM-6D Platform

PM-6D Platform

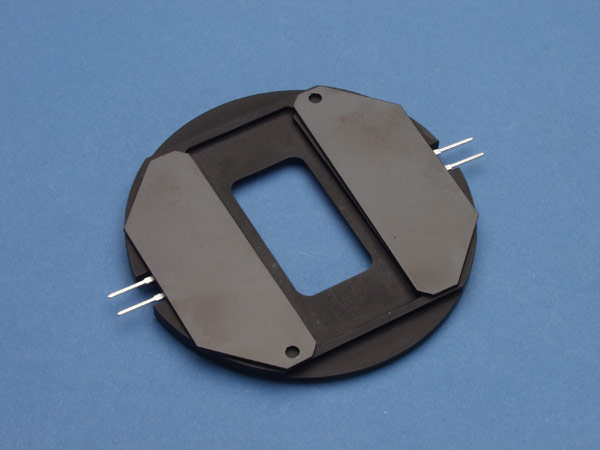

PM-7 Platform

PM-7 Platform

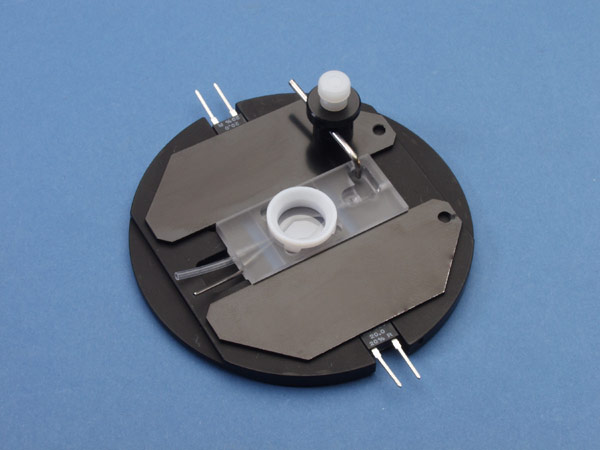

PM-5 with Chamber

PM-5 with Chamber

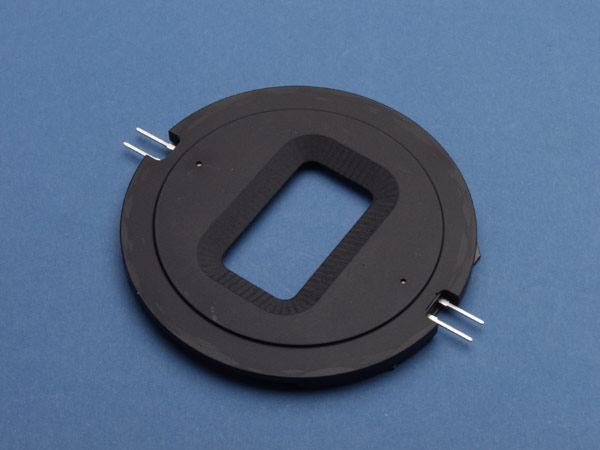

PM-6 Inverted

PM-6 Inverted

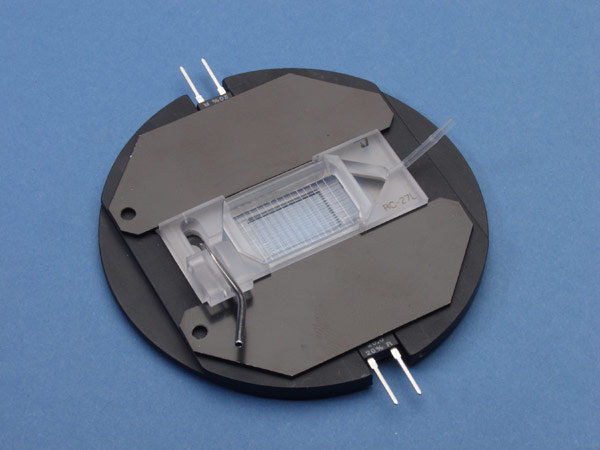

PM-6D with Chamber

PM-6D with Chamber

PM-7 with Chamber

PM-7 with Chamber

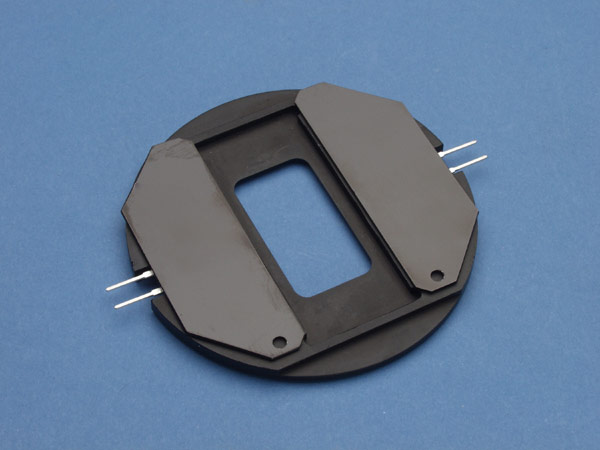

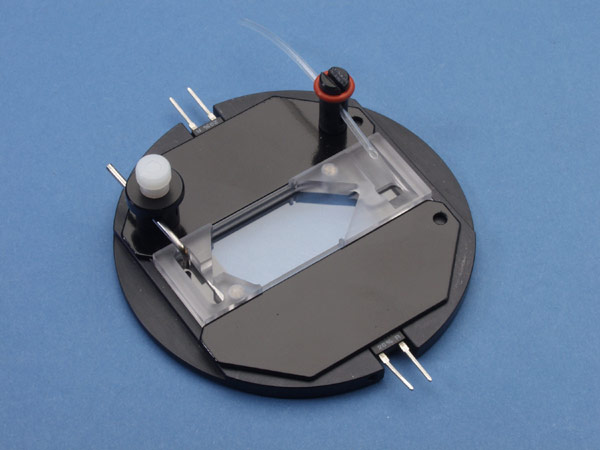

PM-7D Platform

PM-7D Platform

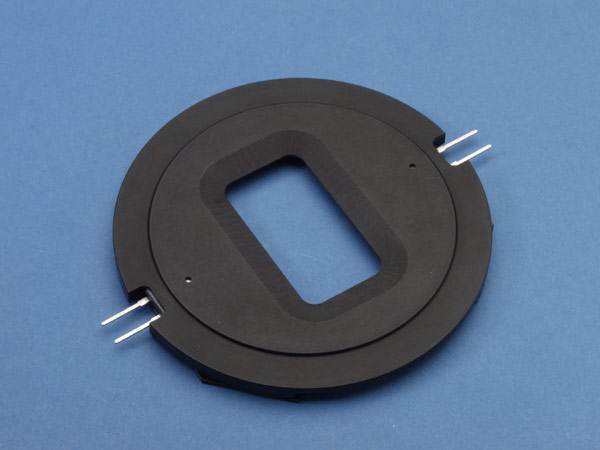

PM-7D Inverted

PM-7D Inverted

OD 79.3 mm
Composition Black anodized magnetic stainless steel
Thermistor Specifications 20 kΩhm Power Resistors



Associated Magnetic Platform Fits Series 20 Chamber Aperture (mm) Order Number
PM-1 RC-22, RC-22C, RC-24, RC-24E, RC-24N, RC-26, RC-26G, RC-26GLP, RC-26Z, JG-23N/HP, JG-23W/HP, JG-23W/LP 17.8 64-1526
PM-2 RC-21B, RC-21BR, RC-21BDW, RC-21BRW, RC-21BRFS 17.8 64-1561
PM-3 RC-25 9.5 64-1562
PM-4 RC-25F 13.0 64-1563
PM-5 RC-20, RC-20H 12.0 64-1564
PM-6 RC-27, RC-27N, RC-27NE, RC-28 19.0 x 35.6 64-1527
PM-6D RC-27L, RC-29 19.0 x 35.6 64-1528
PM-7 RC-27D Drip Chamber 19.0 x 35.6 64-1529
PM-7D RC-27LD Drip Chamber with slice support 19.0 x 35.6 64-1530



Order No. Model No. Product Description USA Price Order
64-0107 TA-29 Cable with bead thermistor Login Login
64-0108 TA-30 Cable with glass thermistor Login Login
64-0106 CC-28 Cable assembly for heater controllers to platform Login Login
64-0303 CC-15 Cable assembly for heater controllers, with tinned leads at connector end Login Login
64-0109 CC-35 Cable assembly for heater controllers, unterminated with tinned leads at platform end Login Login
64-0269 TS-60P Replacement probe thermistor for CC-28 cable Login Login
64-0270 TS-70B Replacement bead thermistor for CC-28 Cable Login Login

Order No. Model No. Product Description USA Price Order
Platforms
64-1526 PM-1 PM-1 Platform for Series 20 chambers, heated, magnetic clamps Login Login
64-1561 PM-2 PM-2 Platform for Series 20 chambers, magnetic clamps, heated Login Login
64-1562 PM-3 PM-3 Platform for Series 20 chambers, magnetic clamps, heated Login Login
64-1563 PM-4 PM-4 Platform for Series 20 chambers, magnetic clamps, heated Login Login
64-1564 PM-5 PM-5 Platform for Series 20 chambers, magnetic clamps, heated Login Login
64-1527 PM-6 PM-6 Platform for Series 20 chambers, magnetic clamps, heated Login Login
64-1528 PM-6D PM-6D Platform for Series 20 chambers, magnetic clamps, heated Login Login
64-1529 PM-7 PM-7 Platform for RC-27D chambers, magnetic clamps, heated Login Login
64-1530 PM-7D PM-7D Platform for RC-27LD chambers, magnetic clamps, heated Login Login
Temperature Controllers
64-2401 TC-344C Heater controller, dual channel, 110-230 VAC, 50/60Hz Login Login
64-2400 TC-324C Heater controller, single channel, 110-230 VAC, 50/60Hz Login Login
Temperature Control Accessories
64-0106 CC-28 Cable assembly for heater controllers to platform Login Login
64-0107 TA-29 Cable with bead thermistor Login Login
64-0108 TA-30 Cable with glass thermistor Login Login
64-0303 CC-15 Cable assembly for heater controllers, with tinned leads at connector end Login Login
64-0109 CC-35 Cable assembly for heater controllers, unterminated with tinned leads at platform end Login Login
Replacement Parts
64-0270 TS-70B Replacement bead thermistor for CC-28 Cable Login Login
64-0269 TS-60P Replacement probe thermistor for CC-28 cable Login Login
64-3018 PM-plate Pressure plates for PM Series platforms, 2 pack Login Login
