Product Summary

Anodized aluminum platforms provide clamping between our Series 20 chambers and their bottom glass coverslips to create a water tight seal.



  • Black anodized aluminum provides good heat conductivity and low stray light reflectance
  • A small hole drilled along platform edge for placement of T1 feedback control thermistor
  • Each Series 20 Platform is compatible with all Series 20 Microscope Stage Adapters
  • Platforms without heating elements can be upgraded later

The Series 20 Platforms function as a base for the Series 20 Imaging and Recording Chambers and provides the clamping needed to make a seal between a chamber and its bottom glass coverslip.

Platforms are machined from aluminum and finished with a black anodize. This provides excellent heat conductivity and minimizes stray light reflectance. Sliding clamps used on most models permit easy removal of the chamber to change its coverslip. The P-2 Platform uses a one piece clamp secured with 4 screws, while all other models use two clamps with 2 screws each (i.e. 4 total).

Platforms can be ordered plain or with resistive heaters. Heater platforms have a pair of 10 ohm resistive elements attached. Control of platform heating is provided by one of our temperature controllers (e.g., TC-344C, TC-324C, CL-200A or CL-100). Connection to the power source can be made using one of our cable assemblies (e.g. CC-28 or CC-15. An ACC-1 adapter cable is also required when connecting to the CL-100 or CL-200A.)

Information on the proper placement of the feedback resistor in the platform body can be found here.

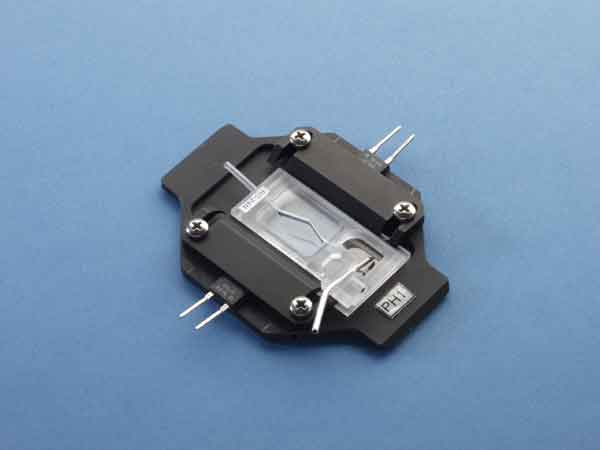

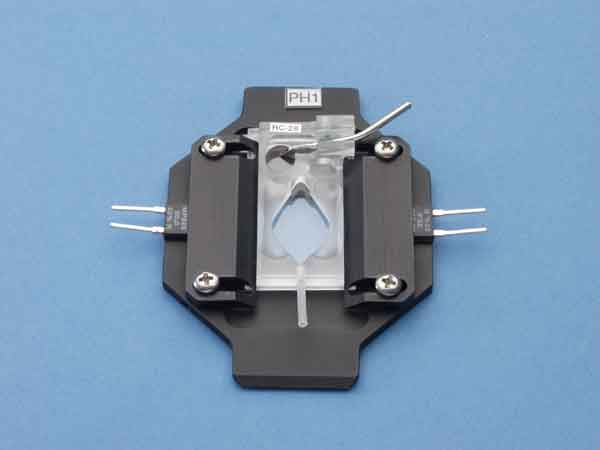

Views of PH-1 platform with RC-24N and RC-26G chambers. Click on image to enlarge.

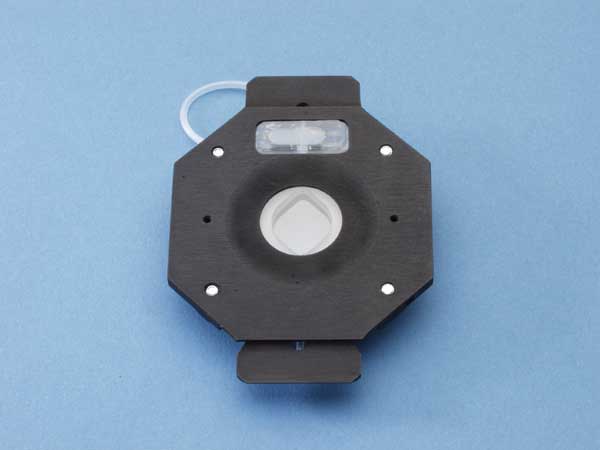

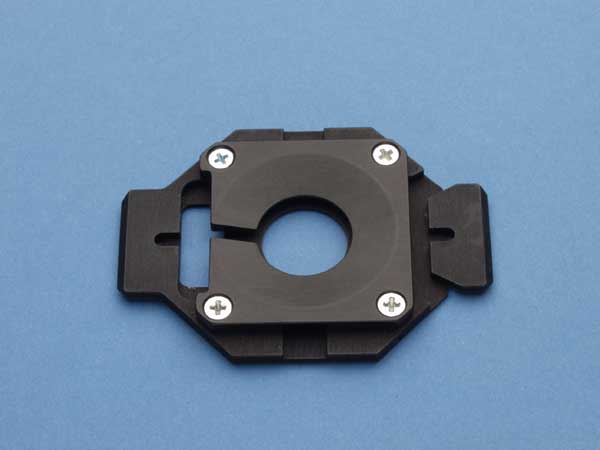

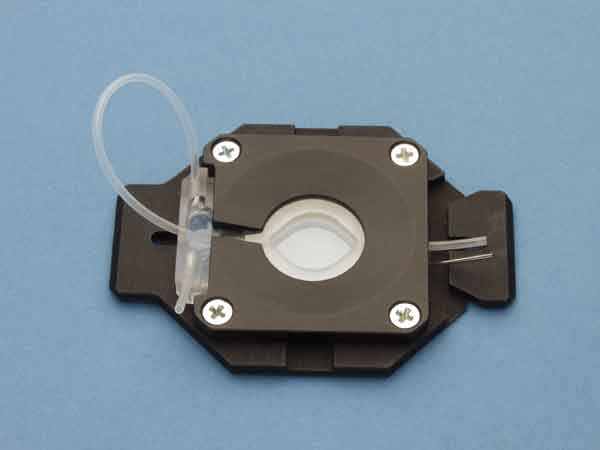

Views of the P-2 platform both with and without an RC-21B chamber. Click on an image to enlarge.



NOTE: Warner Instrument Series P or PH platforms are designed to fit the Zeiss 76x26 microscope slide frame (#471719) without the use of a stage adapter. Series PM platforms require a stage adapter. In general, all heater platforms will benefit from an insulating material between the platform and frame.



Platform Dimensions

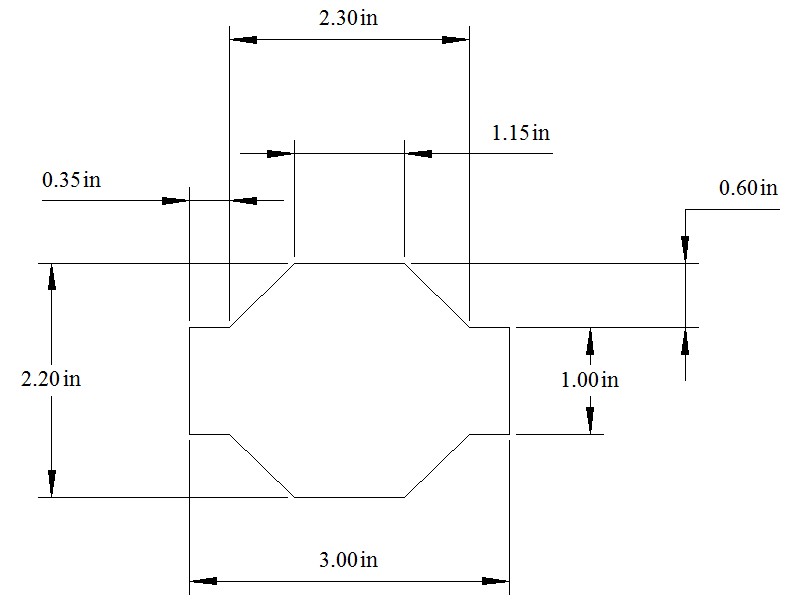

PH platform dimensions


Click to enlarge



Chamber/Platform look-up table
Our selections update continually, please call our offices if you don't see your specific chamber below.

Imaging or Recording Chamber

Central Aperture

Platform
(non-heating,
heating)

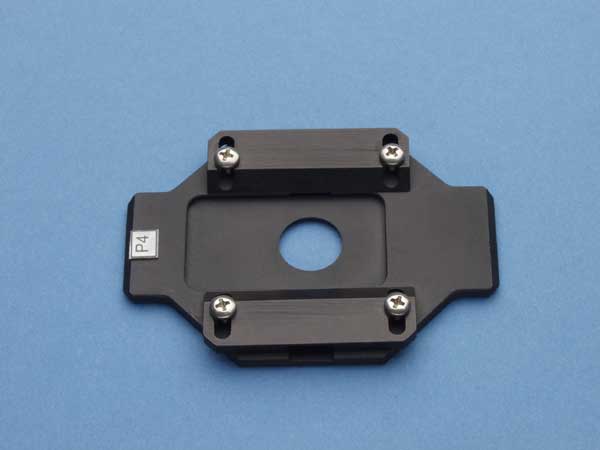

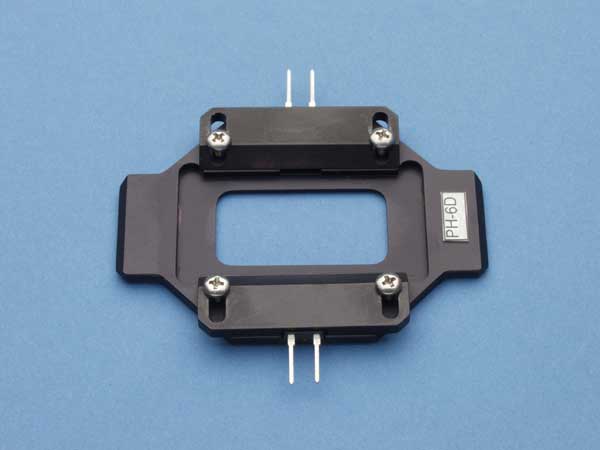

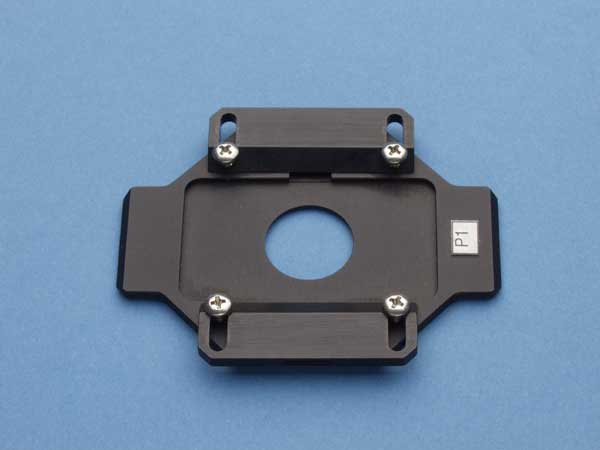

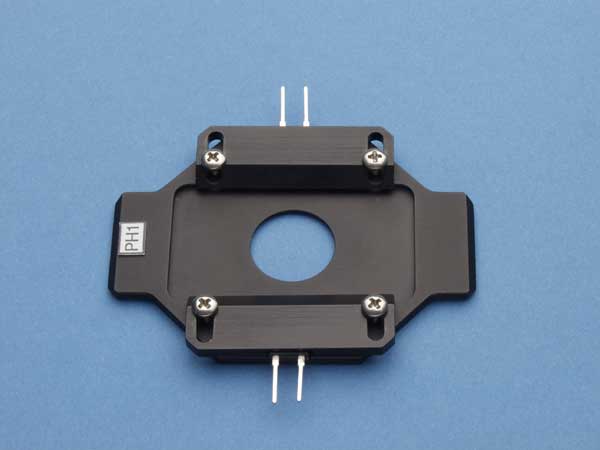

Platform image

RC-22
RC-22C
RC-24
RC-24E
RC-26
RC-26G
RC-26GLP
RC-26Z
JG-23N/HP
JG-23W/HP
JG-23W/LP

17.8 mm

P-1, PH-1

RC-21B
RC-21BR
RC-21BDW
RC-21BRW
RC-21BRFS

17.5 mm

P-2, PH-2

RC-25

9.5 mm

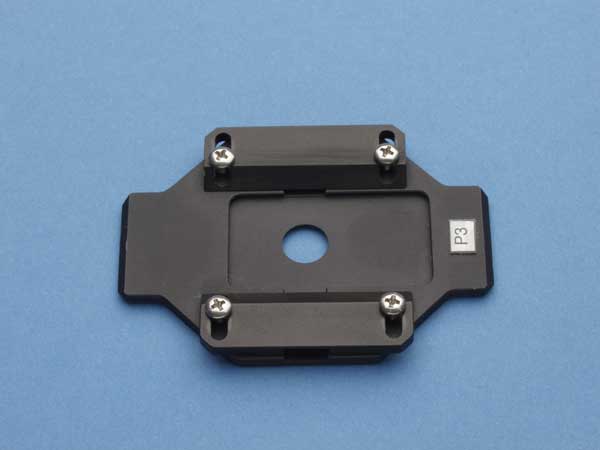

P-3, PH-3

RC-25F

13.0 mm

P-4, PH-4

RC-20
RC-20H

12.0 mm

P-5, PH-5

RC-27
RC-27N
RC-27NE2
RC-28

18.9 x 35.6 mm

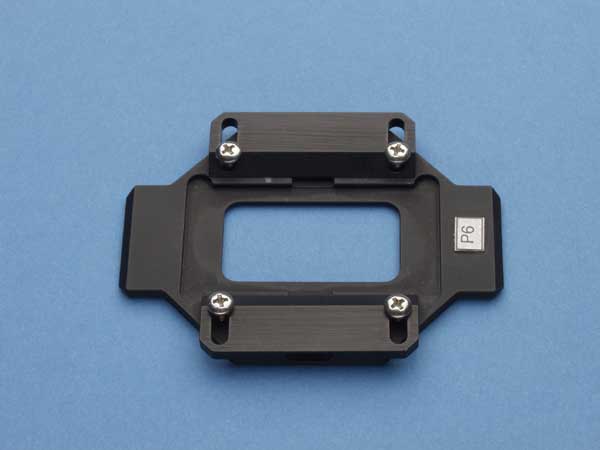

P-6, PH-6

RC-27L
RC-29

18.9 x 35.6 mm

P-6D, PH-6D

References

References
  1. A Fluorescent Sensor for Imaging Reversible Redox Cycles in Living Cells, Evan W. Miller, Shelly X. Bian, Christopher J. Chang*, J Am Chem Soc, 2007 - pubs.acs.org

  2. Glial Cell Line-Derived Neurotrophic Factor Family Members Sensitize Nociceptors In Vitro and Produce Thermal Hyperalgesia In Vivo,
    Sacha A. Malin, Derek C. Molliver, H. Richard Koerber, Pamela Cornuet, Rebecca Frye, Kathryn M. Albers, and Brian M. Davis,
    The Journal of Neuroscience, August 16, 2006, 26(33):8588-8599

  3. MOLECULAR MECHANISMS OF AGING IN THE PERIPHERAL NOCICEPTIVE SYSTEM
    Shuying Wang
    Submitted to the Graduate Faculty of School of Medicine in partial fulfillment of the requirements for the degree of Doctor of Philosophy University of Pittsburgh 2006

  4. Evidence for High-Capacity Bidirectional Glucose Transport across the Endoplasmic Reticulum Membrane by Genetically Encoded Fluorescence Resonance Energy Transfer Nanosensors
    Fehr M, Takanaga H, Ehrhardt DW, Frommer WB
    Mol Cell Biol. 2005 Dec;25(24):11102-12

  5. Disturbed Ca2+ signaling and apoptosis of medium spiny neurons in Huntington's disease,
    Tie-Shan Tang, Elizabeth Slow, Vitalie Lupu, Irina G. Stavrovskaya, Mutsuyuki Sugimori , Rodolfo Llinás, Bruce S. Kristal, Michael R. Hayden, and Ilya Bezprozvanny,
    PNAS | February 15, 2005 | vol. 102 | no. 7 | 2602-2607

























    6.
  6.
  7.
  8.
  9.
  10.
  11.
  12.
  13.
  14.
  15.
  16.
  17.
  18.
  19.
  20.
  21.
  22.
  23.
  24.
  25.
  26.
  27.
  28.

Customers from Europe and Australia can use the Multi Channel Systems - Online Shop to order Warner products or create quotes.

Order No. Model No. Product Description USA Price Order
Platforms With Heating Elements
64-0284 PH-1 PH-1 Platform for Series 20 chambers, heater Login Login
64-0285 PH-2 PH-2 Platform for Series 20 chambers, heater Login Login
64-0286 PH-3 PH-3 Platform for Series 20 chambers, heater Login Login
64-0287 PH-4 PH-4 Platform for Series 20 chambers, heater Login Login
64-0288 PH-5 PH-5 Platform for Series 20 chambers, heater Login Login
64-0289 PH-6 PH-6 Platform for Series 20 chambers, heater Login Login
64-0290 PH-6D PH-6D Platform for Series 20 chambers, heater Login Login
Platforms Without Heating Elements
64-0277 P-1 P-1 Platform for Series 20 chambers, non-heater Login Login
64-0278 P-2 P-2 Platform for Series 20 chambers, non-heater Login Login
64-0279 P-3 P-3 Platform for Series 20 chambers, non-heater Login Login
64-0280 P-4 P-4 Platform for Series 20 chambers, non-heater Login Login
64-0281 P-5 P-5 Platform for Series 20 chambers, non-heater Login Login
64-0282 P-6 P-6 Platform for Series 20 chambers, non-heater Login Login
64-0283 P-6D P-6D Platform for Series 20 chambers, non-heater Login Login
Temperature Controllers
64-2401 TC-344C Heater controller, dual channel, 110-230 VAC, 50/60Hz Login Login
64-2400 TC-324C Heater controller, single channel, 110-230 VAC, 50/60Hz Login Login
Temperature Control Accessories
64-0106 CC-28 Cable assembly for heater controllers to platform Login Login
64-0107 TA-29 Cable with bead thermistor Login Login
64-1427 ACC-1 Adapter cable to connect CL-100/CL-200A to 8 pin DIN heaters Login Login
Replacement Parts
64-1506 RPC-1 Replacement platform clamps and screws for P and PH Series platforms, 2 pack Login Login
64-0274 RH-2 Heater elements for Warner chambers and platforms, 2 pack Login Login
