(Harps) Slice Anchors & Kits

Product Summary

Slice anchors are used to secure tissue slices in a Warner recording chamber during perfusion

  • Designed to easily insert into the chambers bath
  • Made from 316 stainless steel with Lycra® threads, finished with a plastic coating
  • Plastic anchors are also available for the RC-27L family of chambers

Commonly called harps, slice anchors and anchor kits are available for Warner's Series 20 and Series 40 recording chambers. Constructed from Type 316 stainless steel with Lycra® threads, Warner anchors are designed to gently grip the sidewall of the chamber, thus allowing the user to control the pressure applied to the slice.

While most anchors are made from stainless steel, we also have plastic anchors available for the RC-27L chamber family. Anchors threads are made from 0.1 mm thick Lycra® at 1.0 mm, 1.5 mm, and 2.0 mm spacing.

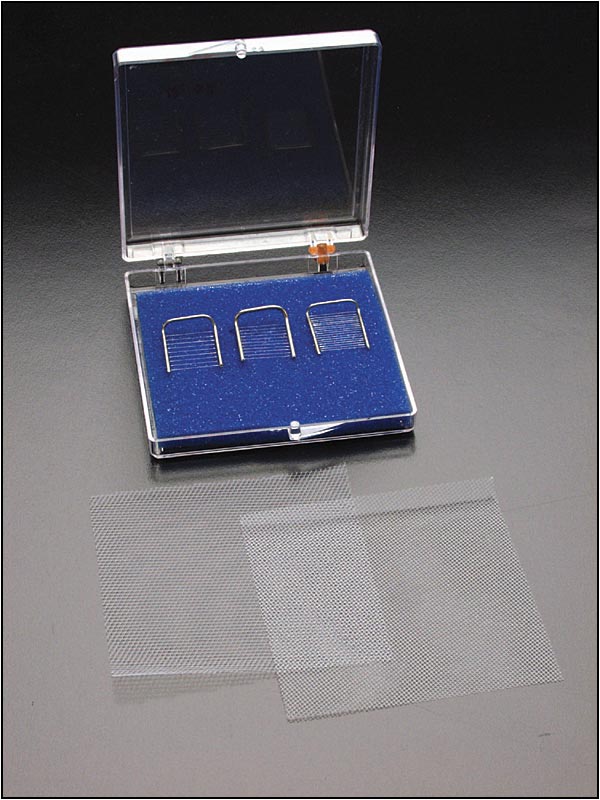

Anchor Kits

Kits containing two or three harps, and Nylon® support meshes are available for most chambers. All kits come with mesh in two sizes (112 micron and 160 micron) that may be cut and used in conjunction with the slice anchor.

Kits for the RC-26 / RC-26GRC-27, and RC-27L / RC-27D / RC-29 chambers contain three anchors with either stainless steel or plastic frames.

Kits for the RC-22 / RC-22C chambers contain two loop-style stainless steel anchors with Lycra® threads at 1.0 mm and 1.5 mm spacing.

Slice Anchors & Kits (Harps)

Thread thickness is 0.04 mm

  Order No. Model No. Description Dimensions
Slice Anchors & Kits (Harps) 64-0246 SHD-22L/15 For RC-22 Chamber, 1.5 mm 8x18 mm
64-0248 SHD-22L/10 For RC-22 Chamber, 1.0 mm 8x18 mm
Slice Anchors & Kits (Harps) 64-0247 SHD-22CL/15 For RC-22C Chamber, 1.5 mm 10x18 mm
64-0249 SHD-22CL/10 For RC-22C Chamber, 1.0 mm 10x18 mm
Slice Anchors & Kits (Harps) 64-0250 SHD-26H/10 For RC-26 Chamber, 1.0 mm 12x17 mm
64-0251 SHD-26H/15 For RC-26 Chamber, 1.5 mm 12x17 mm
64-0252 SHD-26H/2 For RC-26 Chamber, 2.0 mm 12x17 mm

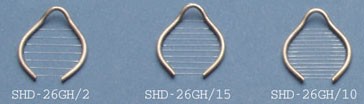

Slice Anchors & Kits (Harps) 64-0253 SHD-26GH/10 For RC-26G Chamber, 1.0 mm 15x19 mm
64-0254 SHD-26GH/15 For RC-26G Chamber, 1.5 mm 15x19 mm
64-0255 SHD-26GH/2 For RC-26G Chamber, 2.0 mm 15x19 mm

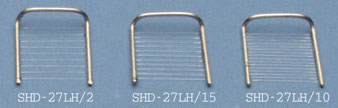

Slice Anchors & Kits (Harps) 64-0256 SHD-27LH/10 For RC-27L & RC-29, 1.0 mm 18.2x20 mm
64-0257 SHD-27LH/15 For RC-27L & RC-29, 1.5 mm 18.2x20 mm
64-0258 SHD-27LH/2 For RC-27L & RC-29, 2.0 mm 18.2x20 mm

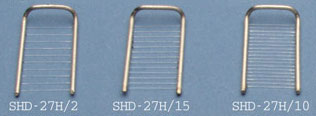

Slice Anchors & Kits (Harps) 64-0194 SHD-27H/10 For RC-27 Chamber, 1.0 mm 13x23 mm
64-0193 SHD-27H/15 For RC-27 Chamber, 1.5 mm 13x23 mm
64-0192 SHD-27H/2 For RC-27 Chamber, 2.0 mm 13x23 mm

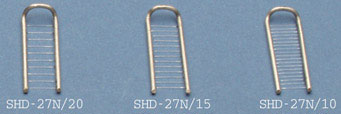

Slice Anchors & Kits (Harps) 64-0197 SHD-27N/10 For RC-27N Chamber, 1.0 mm 8.5x24 mm
64-0196 SHD-27N/15 For RC-27N Chamber, 1.5 mm 8.5x24 mm
64-0195 SHD-27N/20 For RC-27N Chamber, 2.0 mm 8.5x24 mm
Slice Anchors & Kits (Harps) 64-1411 3SHD-22F/15 Flat for RC-22 Chamber, 1.5 mm 8x18 mm
64-1412 SHD-22F/10 Flat for RC-22 Chamber, 1.0 mm 8x18 mm
Slice Anchors & Kits (Harps) 64-1413 SHD-22CF/15 Flat for RC-22C Chamber, 1.5 mm 10x18 mm
64-1414 SHD-22CF/10 Flat for RC-22C Chamber, 1.0 mm 10x18 mm
Slice Anchors & Kits (Harps) 64-1415 SHD-40/2 Flat for RC-40 Chamber, 2.0 mm 19.7 mm
64-1416 SHD-40/15 Flat for RC-40 Chamber, 1.5 mm 19.7 mm
64-1417 SHD-40/10 Flat for RC-40 Chamber, 1.0 mm 19.7 mm
Slice Anchors & Kits (Harps) 64-1418 SHD-41/15 Flat for RC-41 Chamber, 1.5 mm 13.3 mm
64-1419 SHD-41/10 Flat for RC-41 Chamber, 1.0 mm 13.3 mm
Slice Anchors & Kits (Harps) 64-1420 SHD-42/15 Flat for RC-42 Chamber, 1.5 mm 10.5 mm
64-1421 SHD-42/10 Flat for RC-42 Chamber, 1.0 mm 10.5 mm

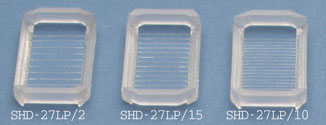

Slice Anchors & Kits (Harps) 64-0259 SHD-27LP/10 Plastic for RC-27L & RC-29, 1.0 mm 18x28 mm
64-0260 SHD-27LP/15 Plastic for RC-27L & RC-29, 1.5 mm 18x28 mm
64-0261 SHD-27LP/2 Plastic for RC-27L & RC-29, 2.0 mm 18x28 mm

Order No. Model No. Product Description USA Price Order
64-1421 SHD-42/10 Slice anchor for RC-42, 1.0 mm thread spacing, flat frame, stainless steel Login Login
64-0254 SHD-26GH/15 Slice anchor for RC-26G, 1.5 mm thread spacing, stainless steel Login Login
64-0258 SHD-27LH/2 Slice anchor for RC-27L, RC-27D, RC-29, 2.0 mm thread spacing, stainless steel Login Login
64-1419 SHD-41/10 Slice anchor for RC-41, 1.0 mm thread spacing, flat frame, stainless steel Login Login
Series 20 Slice Anchor Kits
64-0263 SHD-22KIT Slice anchor kit for RC-22, stainless steel Login Login
64-0267 SHD-27KIT Slice anchor kit for RC-27, stainless steel Login Login
64-0191 SHD-27NKIT Slice anchor kit for RC-27N, stainless steel Login Login
64-0268 SHD-27LKIT Slice anchor kit for RC-27L, RC-27D, RC-29, stainless steel Login Login
64-0190 SHD-27LPKIT Slice anchor kit for RC-27L, RC-27D, RC-29, plastic frame Login Login
RC-22 Chamber Slice Anchors
64-0248 SHD-22L/10 Slice anchor for RC-22, 1.0 mm thread spacing, stainless steel Login Login
64-0246 SHD-22L/15 Slice anchor for RC-22, 1.5 mm thread spacing, stainless steel Login Login
64-1412 SHD-22F/10 Slice anchor for RC-22, 1.0 mm thread spacing, flat frame, stainless steel Login Login
64-1411 SHD-22F/15 Slice anchor for RC-22, 1.5 mm thread spacing, flat frame, stainless steel Login Login
RC-22C Chamber Slice Anchors
64-0264 SHD-22CKIT Slice anchor kit for RC-22C, stainless steel Login Login
64-0249 SHD-22CL/10 Slice anchor for RC-22C, 1.0 mm thread spacing, stainless steel Login Login
64-0247 SHD-22CL/15 Slice anchor for RC-22C, 1.5 mm thread spacing, stainless steel Login Login
64-1414 SHD-22CF/10 Slice anchor for RC-22C, 1.0 mm thread spacing, flat frame, stainless steel Login Login
64-1413 SHD-22CF/15 Slice anchor for RC-22C, 1.5 mm thread spacing, flat frame, stainless steel Login Login
RC-26 Chamber Slice Anchors
64-0265 SHD-26KIT Slice anchor kit for RC-26, stainless steel Login Login
64-0250 SHD-26H/10 Slice anchor for RC-26, 1.0 mm thread spacing, stainless steel Login Login
64-0251 SHD-26H/15 Slice anchor for RC-26, 1.5 mm thread spacing, stainless steel Login Login
64-0252 SHD-26H/2 Slice anchor for RC-26, 2.0 mm thread spacing, stainless steel Login Login
RC-26G / JG-23 Chamber Slice Anchors
64-0266 SHD-26GKIT Slice anchor kit for RC-26G, stainless steel Login Login
64-0253 SHD-26GH/10 Slice anchor for RC-26G, 1.0 mm thread spacing, stainless steel Login Login
64-0255 SHD-26GH/2 Slice anchor for RC-26G, 2.0 mm thread spacing, stainless steel Login Login
RC-27 Chamber Slice Anchors
64-0194 SHD-27H/10 Slice anchor for RC-27, 1.0 mm thread spacing, stainless steel Login Login
64-0193 SHD-27H/15 Slice anchor for RC-27, 1.5 mm thread spacing, stainless steel Login Login
64-0192 SHD-27H/2 Slice anchor for RC-27, 2.0 mm thread spacing, stainless steel Login Login
RC-27N Chamber Slice Anchors
64-0197 SHD-27N/10 Slice anchor for RC-27N, 1.0 mm thread spacing, stainless steel Login Login
64-0196 SHD-27N/15 Slice anchor for RC-27N, 1.5 mm thread spacing, stainless steel Login Login
64-0195 SHD-27N/20 Slice anchor for RC-27N, 2.0 mm thread spacing, stainless steel Login Login
RC-27L / RC-27D / RC-29 Chamber Slice Anchors
64-0256 SHD-27LH/10 Slice anchor for RC-27L, RC-27D, RC-29, 1.0 mm thread spacing, stainless steel Login Login
64-0257 SHD-27LH/15 Slice anchor for RC-27L, RC-27D, RC-29, 1.5 mm thread spacing, stainless steel Login Login
64-0259 SHD-27LP/10 Slice anchor for RC-27L, RC-27D, RC-29, 1.0 mm thread spacing, plastic frame Login Login
64-0260 SHD-27LP/15 Slice anchor for RC-27L, RC-27D, RC-29, 1.5 mm thread spacing, plastic frame Login Login
64-0261 SHD-27LP/2 Slice anchor for RC-27L, RC-27D, RC-29, 2.0 mm thread spacing, plastic frame Login Login
Series 40 Chamber Slice Anchors
64-1417 SHD-40/10 Slice anchor for RC-40, 1.0 mm thread spacing, flat frame, stainless steel Login Login
64-1416 SHD-40/15 Slice anchor for RC-40, 1.5 mm thread spacing, flat frame, stainless steel Login Login
64-1415 SHD-40/2 Slice anchor for RC-40, 2.0 mm thread spacing, flat frame, stainless steel Login Login
64-1418 SHD-41/15 Slice anchor for RC-41, 1.5 mm thread spacing, flat frame, stainless steel Login Login
64-1420 SHD-42/15 Slice anchor for RC-42, 1.5 mm thread spacing, flat frame, stainless steel Login Login
