(DH-40iL) Culture Dish Microincubator

Designed to provide complete environment control for either the Series 40 open bath chambers or 35 mm cell culture dishes.

  • Enables imaging, temperature and atmospheric control within the chamber
  • Sample perfusion supported in both the open and closed configurations
  • Supports Series 40 quick change imaging chambers
  • Supports 35 mm cell culture dishes
  • Compatible with both upright and inverted microscopes
  • Optional heated top coverslip eliminates condensation in the closed configuration

The DH-40iL microincubator is designed for imaging live cells under constant temperature and atmospheric conditions. This compact, versatile incubation system enables high resolution image analysis, fluorescence microscopy, and time-lapse imaging studies while accommodating both upright and inverted microscopes.

The DH-40iL will work, in both its open and closed configurations, with any Warner Series 40 quick change imaging chamber (such as the RC-40LPRC-41LPRC-42LP, and RC-40HP).

In the open configuration, the DH-40iL also works with 35 mm cell culture dishes from Falcon, Corning and Willco, WPI, and MatTek, and can accommodate RC-37 Series dish inserts.

In the closed configuration, the DH-40iL also works with the Corning 35 mm cell culture dish using the new disposable RC-33 Series dish inserts.

Culture Dish Microincubator (DH-40iL)



35 MM culture dishes do not all have the same OD and adapter rings are supplied to insure good thermal contact between the dishes and the DH-40iL. Clamps are also provided to insure good contact between the insert and heated surface, and to prevent movement. Both open and closed configurations provide for continuous perfusion of the sample.

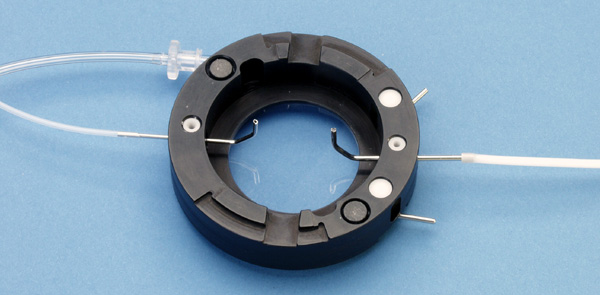

The removable top of the incubator is magnetically held in place and has several sealed ports to allow perfusion, aspiration, and gas maintenance. Perfusion and suction tubes can be easily adjusted without disturbing the cell environment. When used in the open configuration, magnetic clamps are supplied to allow entry of perfusion and suction tubes into the unit.

Culture Dish Microincubator (DH-40iL)



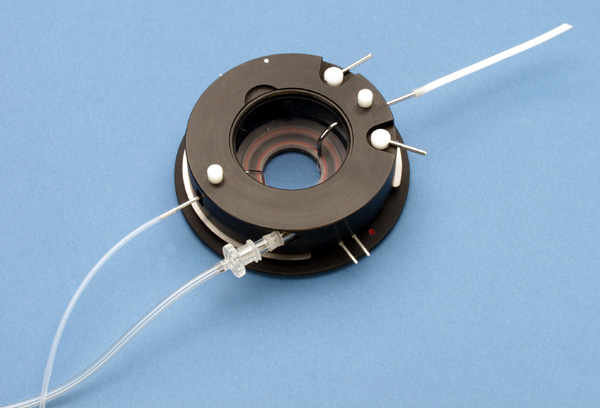

The base section of the DH-40iL has a 25 mm diameter aperture and the removable top section features a 40 mm glass aperture. An optional heated top coverslip (HSC-1) eliminates condensation when the DH-40iL is used in the closed configuration. Resistive heating of the DH-40iL is provided by means of Warner's TC-344C or TC-324C temperature controllers and a CC-28 cable.

Perfusion can be achieved by adding a VC-8 or VC-6 perfusion system, the DVW vacuum system takes care of the waste.

Culture Dish Microincubator (DH-40iL)



The DH-40iL microincubator package includes a set of 4 adapter rings, suction and perfusion tubes, magnetic holders, clamps for Series 40 chambers and 35 mm dishes, PE-160 tubing (10 ft.), 1/16. ID Tygon tubing (25 ft.), and 5 replacement 40 mm coverslips.

The DH-40iL uses Warner's Series 20 stage adapters which are available for all major microscope stages.

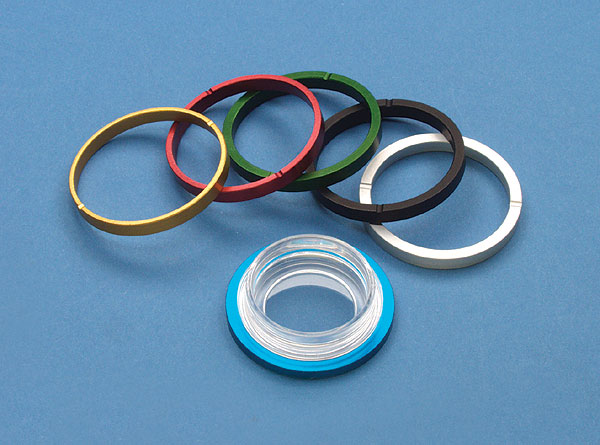

AR-4 Ring Dimensions

Color Weight ID OD
Gold 1.3 g 38.96 mm 40.62 mm
Green 3.2 g 35.94 mm
Blue 2.7 g 33.81 mm
Red 2.1 g 37.44 mm
Black 3.4 g 35.46 mm
Silver 3.5 g 35.41 mm

Specifications

Weight with Cover 134 g
Weight without Cover 55 g
