Specialized Tools for Electrophysiology and Cell Biology Research

Patch Clamp Setup

Click to enlarge

Product Summary

  • Get your complete patch clamp setup from a single source
  • Any component from amplifiers to accessories
  • Well-known brands and products
  • Profound expertise and on-site technical support and installation

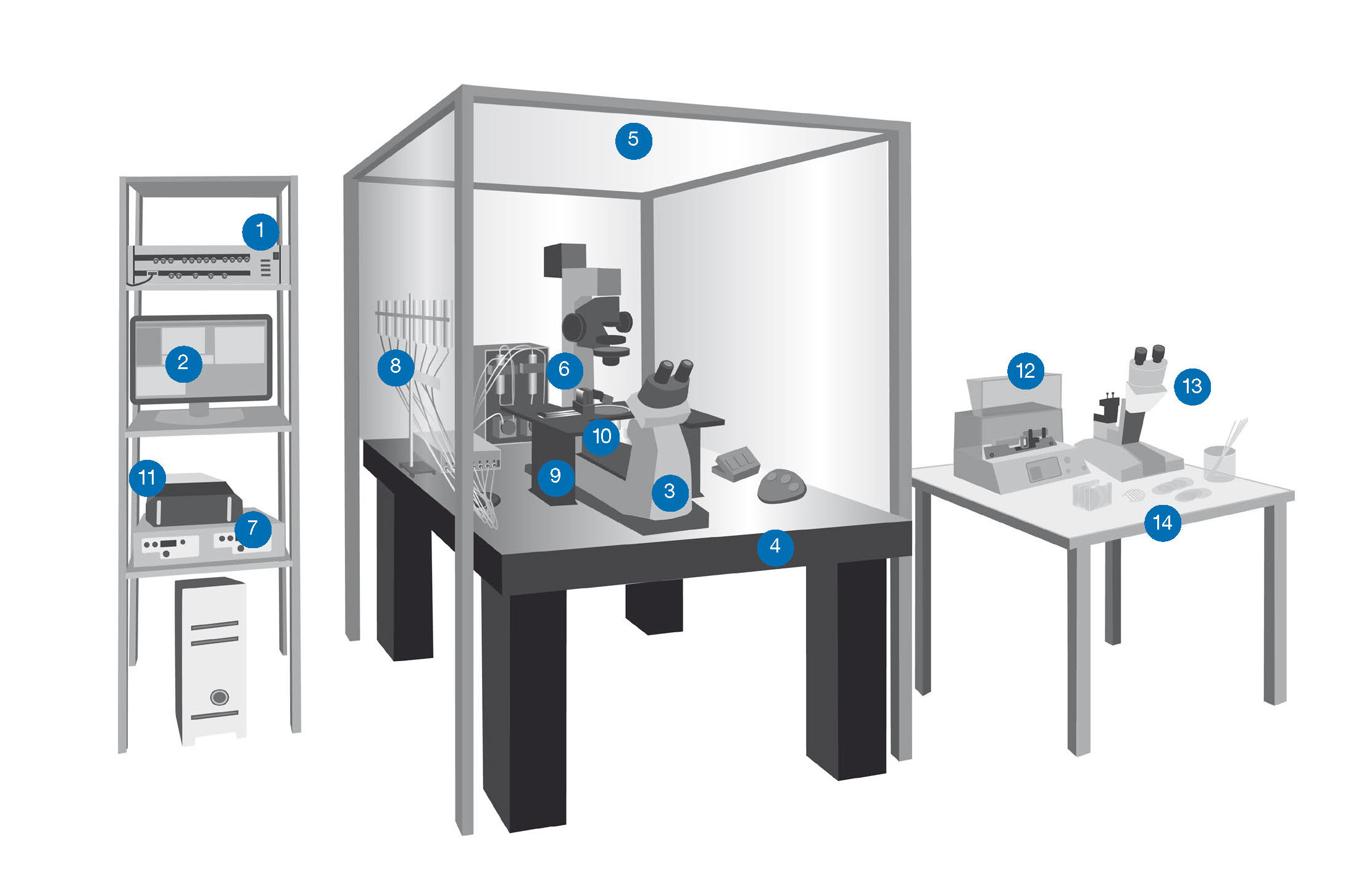

Patch Clamp Setup

RECOMMENDATIONS
  Product What We Recommend

1

 Amplifier
Measures changes in membrane potential or currents resulting from ion-flux through ion channels.		 HEKA EPC 10 USB
Amplifier with built-in data acquisition LIH 8+8, completely software controlled
HEKA EPC 800 USB
Amplifier can be paired with different data acquisitions; with front panel control

2

Data Acquisition Software
Powerful software to control the amplifiers, record and analyze data is a critical tool to produce solid results. We offer you an extensive and flexible software package together with our amplifiers.

DAQ converts analog signals into digital signals. We offer solutions for whole-cell, singlechannel, bilayer, loose patch, intracellular voltage  recordings and amperometry.

 HEKA PATCHMASTER NEXT
Multi-channel data acquisition software and amplifier control
HEKA FITMASTER
Analysis software
HEKA SMARTLUX
Imaging software for simultaneous imaging and
electrophysiological recordings supporting high-end low light cameras
HEKA LIH 8+8
Data acquisition, can be paired with different amplifiers

3

 Microscope
Optical tools to scale up your sample. In cooperation with Zeiss and other microscope manufacturers, we offer  the best solution for your project. For slices, fluorescence, optogenetics, and many more.		 ZEISS AXIO OBSERVER
ZEISS AXIO EXAMINER
Our patch rigs are also compatible with microscopes from Olympus, Nikon, and Leica. Please talk to your sales representative for further options.

4

 Table
An anti-vibration table is required to compensate vibrations which can disrupt your recordings. Even small vibrations in picometer range can break down your seal.		 TMC CLEANBENCH™
KINETIC SYSTEMS LABMATE

5

 Faraday cage
The cage around your patch clamp rig shields noise from interference sources in order to get a perfect signal-to-noise ratio.		 TMC CLEANBENCH™ FARADAY CAGE
KINETIC SYSTEMS LABMATE

6

 Imaging/Recording Chambers and Stage Adapters
Series 20 Imaging and Recording Chambers are designed for electrophysiological recording and/or optical imaging. Applications include patch clamp, oocyte clamp, and other physiological  measurements on cell cultures and tissue preparations.

WARNER CHAMBERS:
RC-26G and PM-1 platform for cultures
RC-27L and PM-6 platform for slice recording

There are many other chamber options available on the Warner website.
Stage Adapters allow the Warner family of products to fit your microscope stage.
Adapters available for almost every upright or inverted stage.

7

 Temperature control
To run your experiments at a constant temperature or to perform temperature-dependent recordings, we offer reliable solutions to control temperature in both the perfused solution and bath chamber.		 WARNER DUAL CHANNEL TEMPERATURE CONTROLLER (TC-344C)
WARNER IN-LINE SOLUTION HEATER (SH-27B)
WARNER PM SERIES MAGNETIC HEATED PLATFORMS
WARNER DUAL CHANNEL BIPOLAR TEMPERATURE CONTROLLER (CL-200A)
WARNER DUAL IN-LINE HEATER/COOLER (SC-20)
WARNER LIQUID COOLING SYSTEM (LCS-1 HEAT EXCHANGER)

8

 Perfusion and Fluid Control

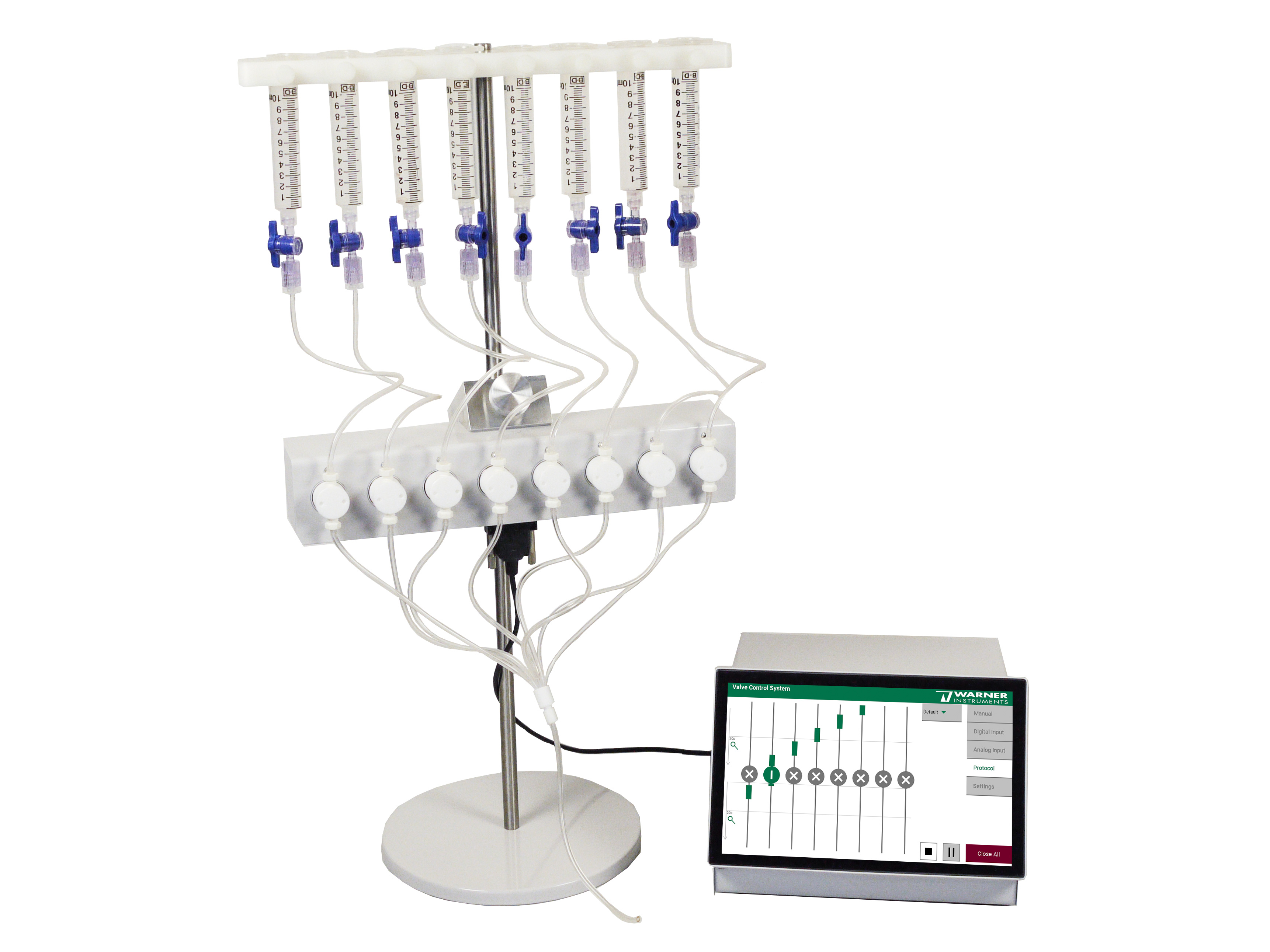

A perfusion system allows a fast and complete exchange of solution. Pumps and vacuum systems complete your perfusion or temperature control system.		 WARNER SIX OR EIGHT CHANNEL PERFUSION VALVE CONTROL SYSTEM (VCS-6/VCS-8)
WARNER DWV WORKSTATION VACUUM SYSTEM
MCS PPS2 PERISTALTIC PERFUSION SYSTEM

9

 Stage
The hybrid stage offers plenty of space for all your tools like micromanipulators, bath perfusion, etc. It can be operated manually or motorized.		 WARNER HYBRID STAGE
This fixed platform with microscope translation table is available for inverted and upright microscopes from all common brands.

10

 Micromanipulator
Patch clamp manipulators are highly precise instruments. They move your patch pipette with nanometer precision.		 SUTTER TRIO™, MP-225 AND MP-285
LUIGS & NEUMANN MICROMANIPULATORS:
Basic Unit, Junior 3 axes, Junior 4 axes, Junior Multipatch, Mini 3 axes Unit, Mini 4 axes Unit, Mini Unit Compact

11

 Stimulus generator
Two independent channels for voltage or current controlled stimulation.		 MCS 2-CHANNEL STIMULUS GENERATOR (STG4002)

12

 Puller
The right pipette for your needs is essential for your successful recordings and reliable data. We offer pullers for conventional glass or quartz, for injection or patch clamp.		 WARNER PROGRAMMABLE PIPETTE PULLER (PMP-102)
SUTTER P-1000 AND P-2000 G OR F

13

 Microforge-grinding, beveler
For polishing, shaping, tipping, bending, beveling, and grinding your micropipettes, we have an all-in-one option: the MFG-5. For sharping only, we offer bevelers as well.		 WARNER MICROFORGE-GRINDING CENTER (MFG-5)
SUTTER BEVELER (BV-10)

14

 Capillary/ coverslips/ accessories
Source all of the required accessories for your patch clamp project from us.		 WARNER COVERSLIP/COVERGLASS
WARNER SLICES ANCHORS KITS (HARPS)
WARNER CAPILLARY GLASS



Customers from Europe and Australia can use the Multi Channel Systems - Online Shop to order Warner products or create quotes.
